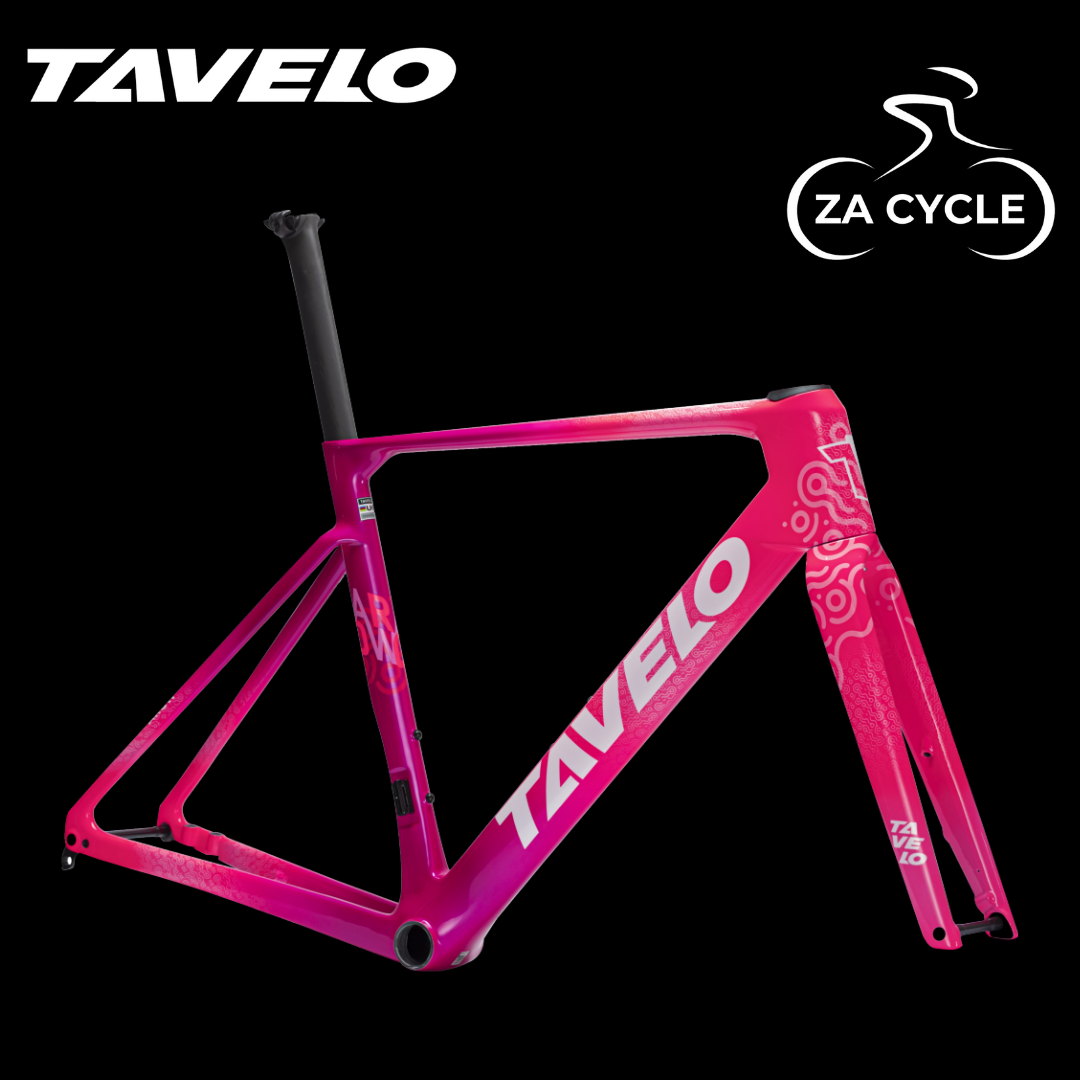

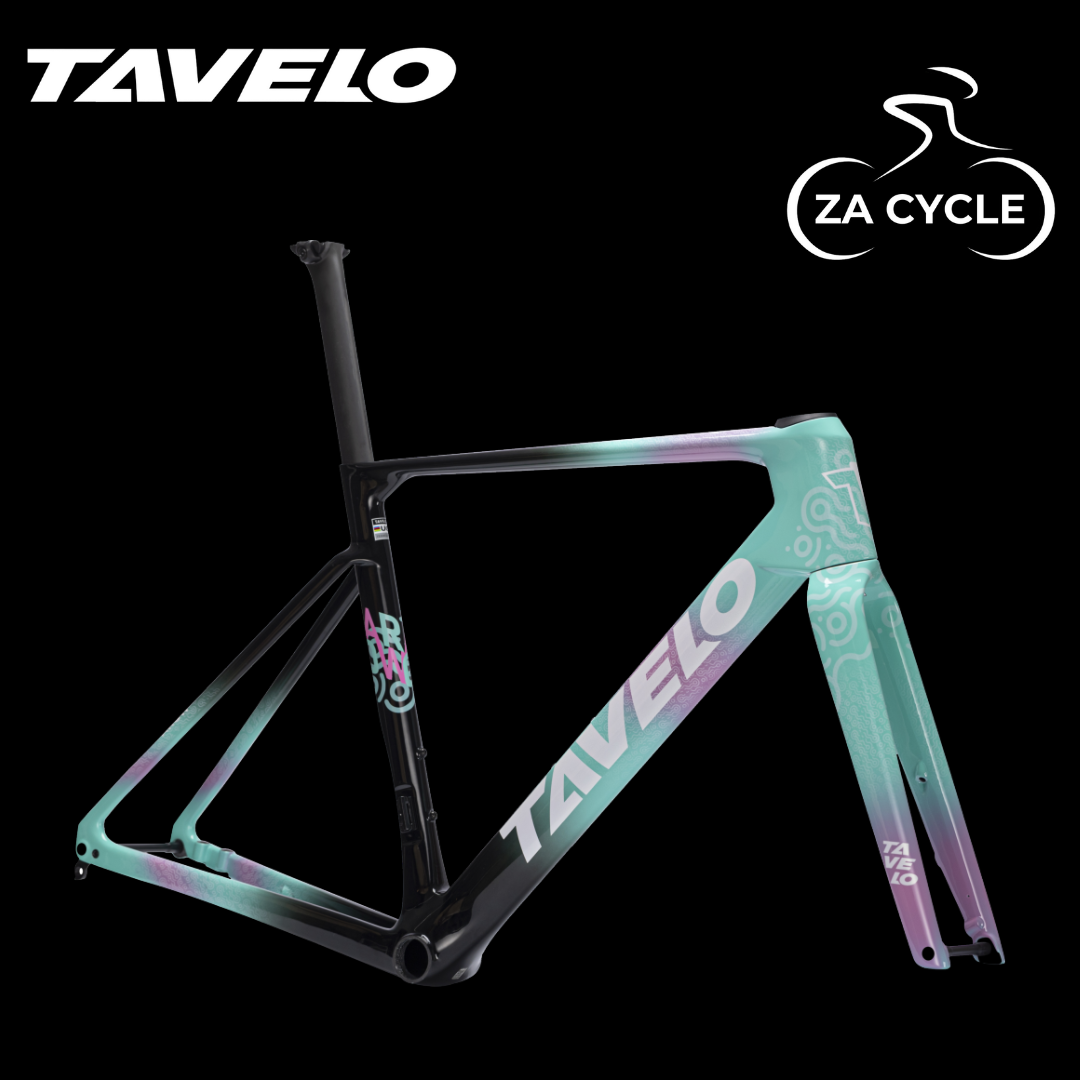

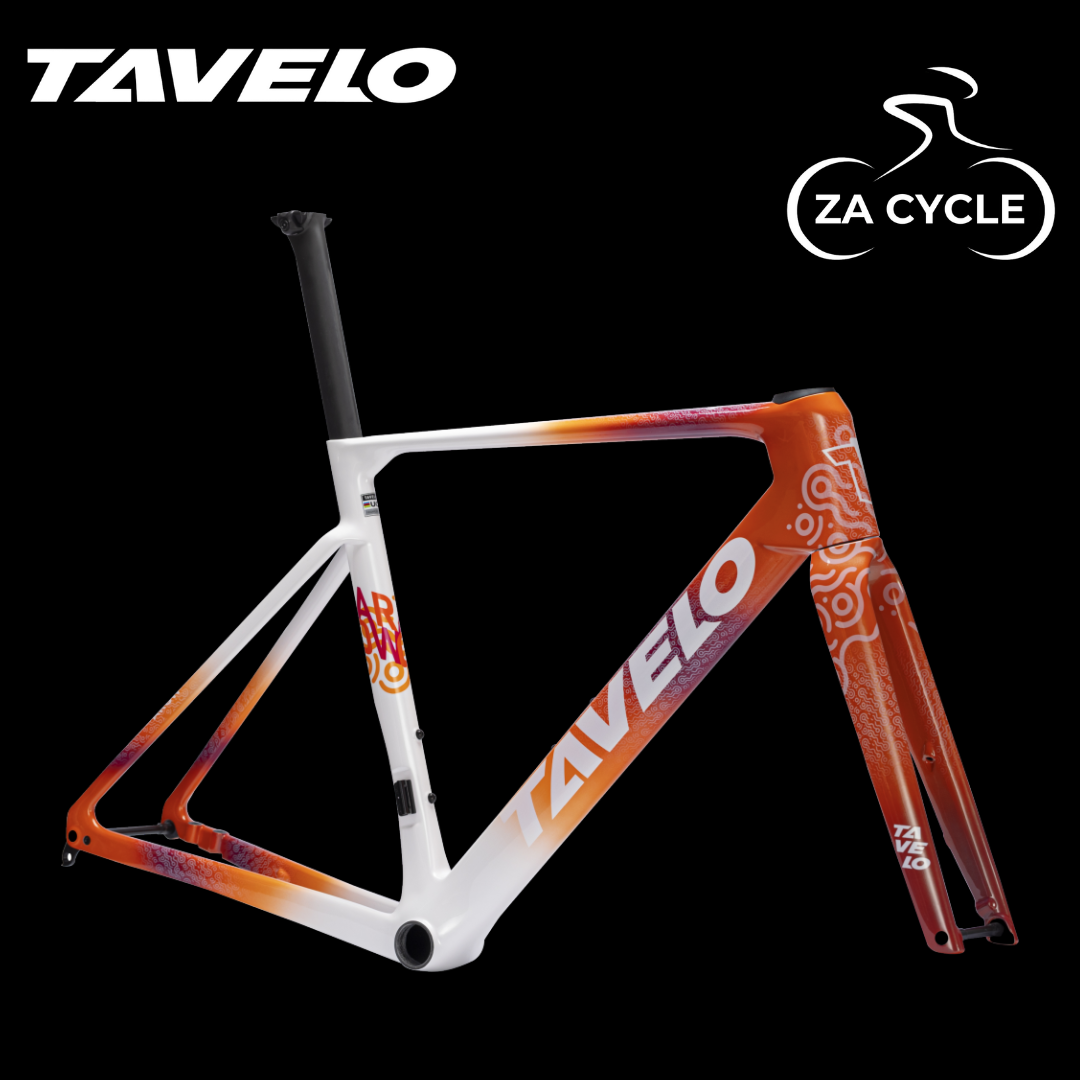

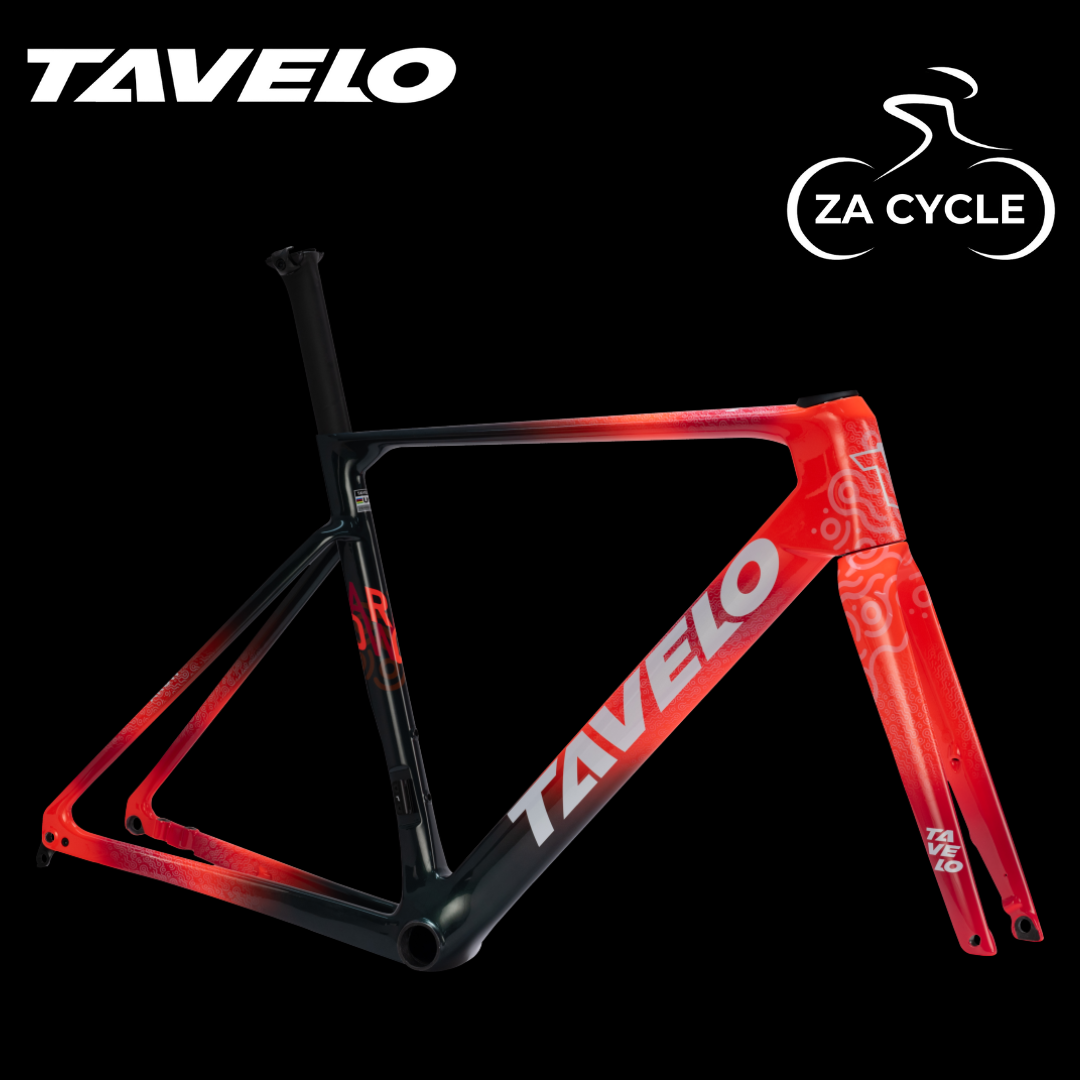

Tavelo Arow Alpha Carbon Road Frame

Specifications – Tavelo AROW Race Frameset

Weight

• Frame: from 820g
• Fork: 355g
• Seatpost: 113g
• Handlebars: 330g (400mm x 110mm)

Included with Frameset

• Frame
• Fork
• Seatpost
• Headset
• Thru axles (F: 12×100mm / R: 12×142mm)
• BB86 bottom bracket (included free)
• AVRO GEN-1 integrated handlebar (included free)

Frame Details

• Bottom Bracket: BB86 (41mm)
• Headset:
  • Upper: ID 32.8mm / OD 41.8mm / H6mm
  • Lower: ID 34.1mm / OD 46.9mm / H7mm
• Seat Rail Compatibility: 7×7mm (metal), 7×9mm (carbon)
• Tire Clearance: Up to 32mm
• Brake Mount: Flat mount disc
• Gear Compatibility: Electronic shifting only

Standards & Certification

• UCI Approved
• Compliant with EN ISO 4210:2014

Available Frame Sizes

• XS (420mm)
• S (450mm)
• M (480mm)
• L (510mm)
• XL (540mm)
• XXL (580mm)

Available Handlebar Sizes
