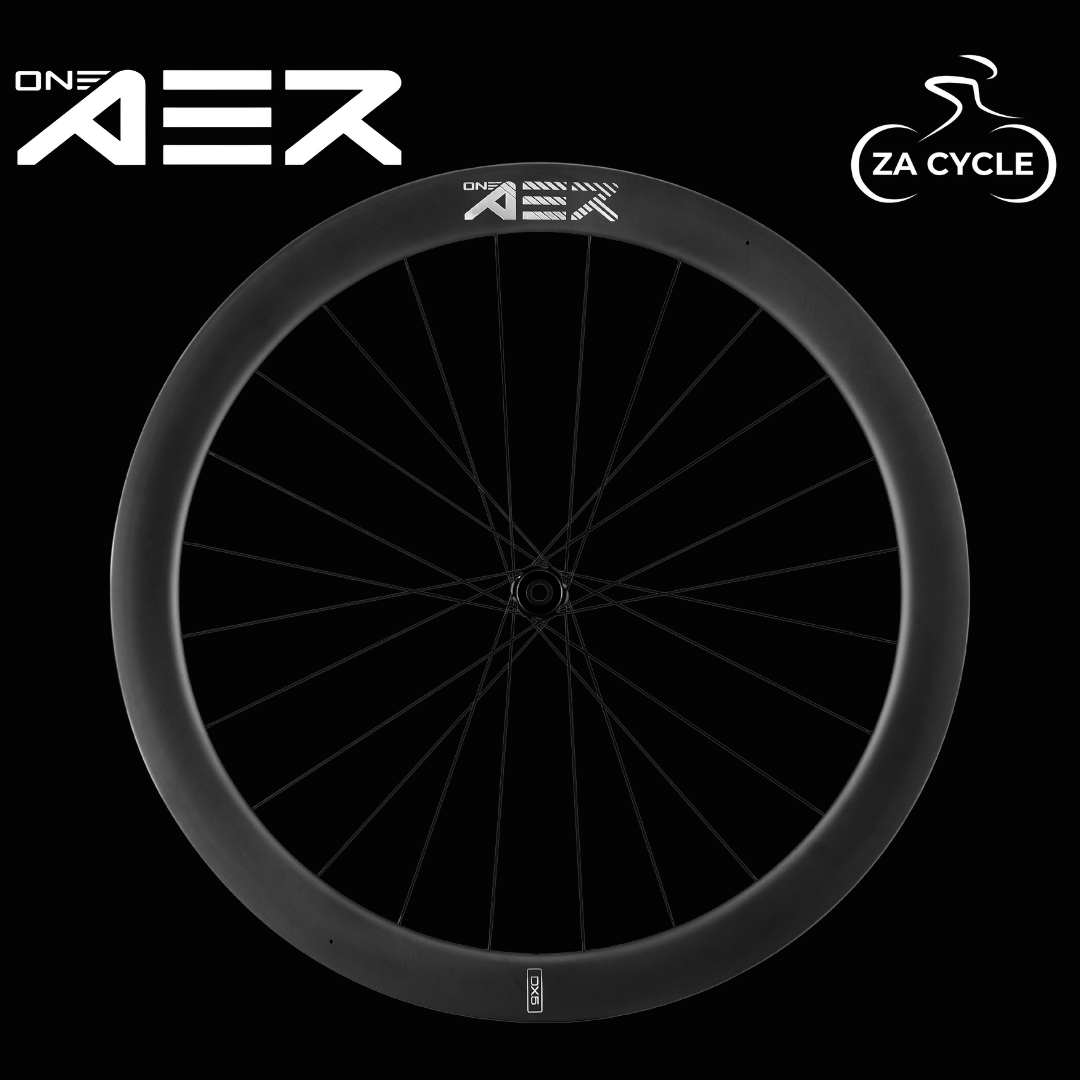

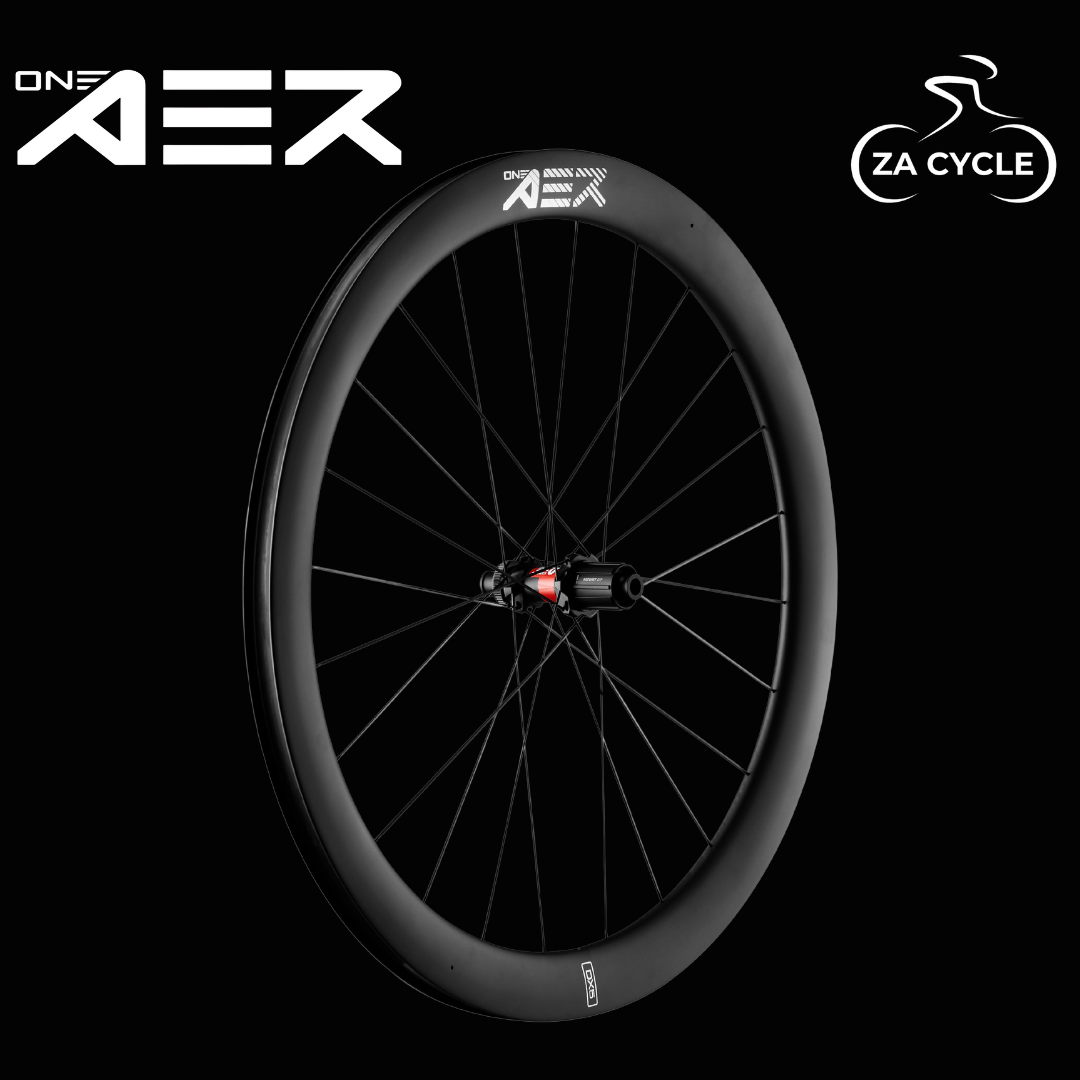

ONEAER DX5 REV Carbon Wheelset

Overview & Key Features
The ONEAER DX5 Rev. is the next evolution in the acclaimed DX series, optimized for all-terrain performance with a wider, lighter, and faster carbon rim profile. With a 50mm depth and 28.5mm external width, it offers excellent aerodynamic performance when paired with 28c tires while providing improved comfort and stability on rougher roads.

At just 1345g, this tubeless-ready carbon wheelset features DT Swiss 240 EXP hubs, Sapim CX-Ray spokes, and industrial-grade build precision, making it an elite option for riders who demand speed, control, and long-lasting reliability.

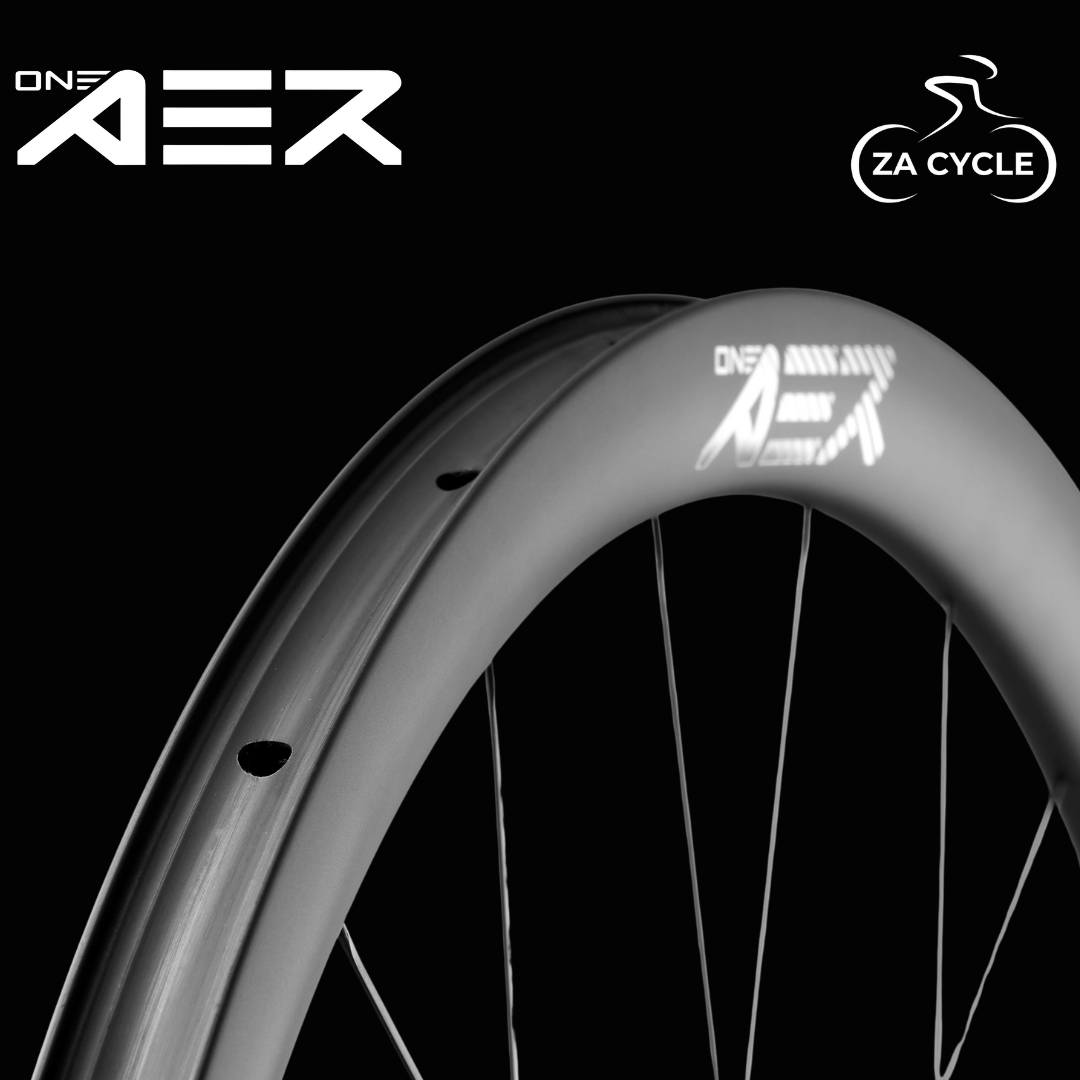

Rim Specifications

• Material: 100% Carbon Fiber
• Rim Depth: 50mm
• External Width: 28.5mm
• Internal Width: 22.5mm
• Tubeless Ready: Yes (rim tape required)
• Tire Compatibility: 700c x 26–32c (best aerodynamics with 28c)
• Maximum Tire Pressure: 120 PSI / 8.3 bar
• Maximum Rider Weight: 120 kg
• Inner Tube Compatible: Yes

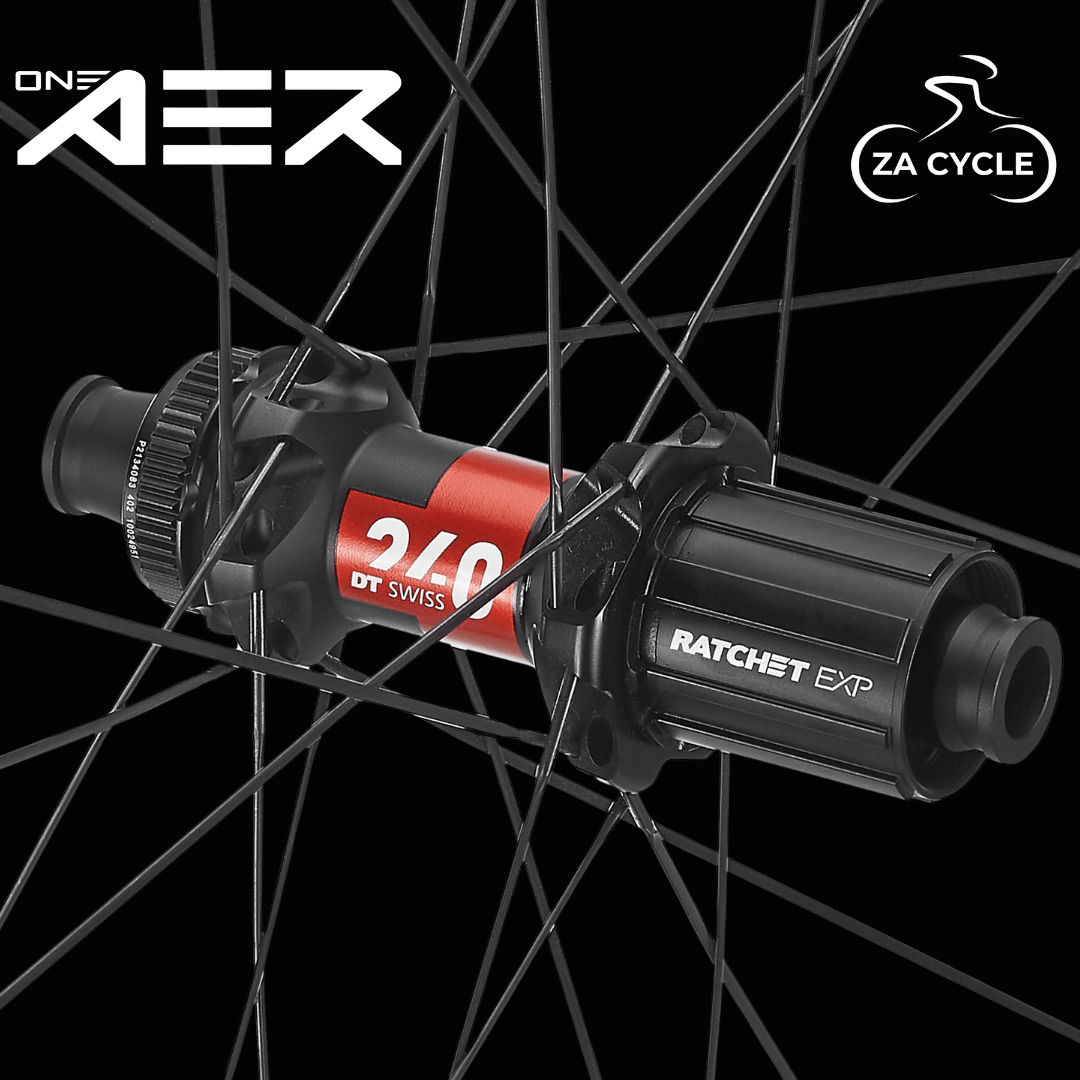

Hub & Bearing System

• Model: DT Swiss 240 EXP
• Type: Straight Pull
• Axle Compatibility: 12 x 100mm (front), 12 x 142mm (rear)
• Brake Interface: Center Lock
• Freehub System: Ratchet EXP 36
• Cassette Compatibility:
  • Shimano 11–12-speed
  • SRAM XDR 12-speed

Spokes & Lacing

• Model: Sapim CX-Ray
• Material: Black Stainless
• Count: 24 front / 24 rear
• Nipples: Internal Alloy Type
• Spoke Pattern: Aerodynamic, high-tension layout for strength and performance

Why Choose This Wheelset?
The DX5 Rev. blends modern aerodynamics with ride quality. Its wide, lightweight carbon rims are ideal for modern tire widths, offering more control and less rolling resistance. DT Swiss internals and CX-Ray spokes ensure top-tier reliability and serviceability. It’s also fitted with a distinctive silver metal decal that gives it a sleek finish against raw carbon.

Each wheel is hand-built and ID-certified, backed by a lifetime warranty for confidence on every ride.

What’s Included in the Box?

• ONEAER DX5 Rev. Carbon Wheelset (Front & Rear)
• Tubeless Rim Tape (pre-installed)
• Tubeless Valves
• Silver Metal Decal Finish
• ID Certificate with QR Code
• User Manual

Ride faster, stronger, and more confidently with the ONEAER DX5 Rev. Experience peak performance with every pedal stroke — order now and level up your ride.
