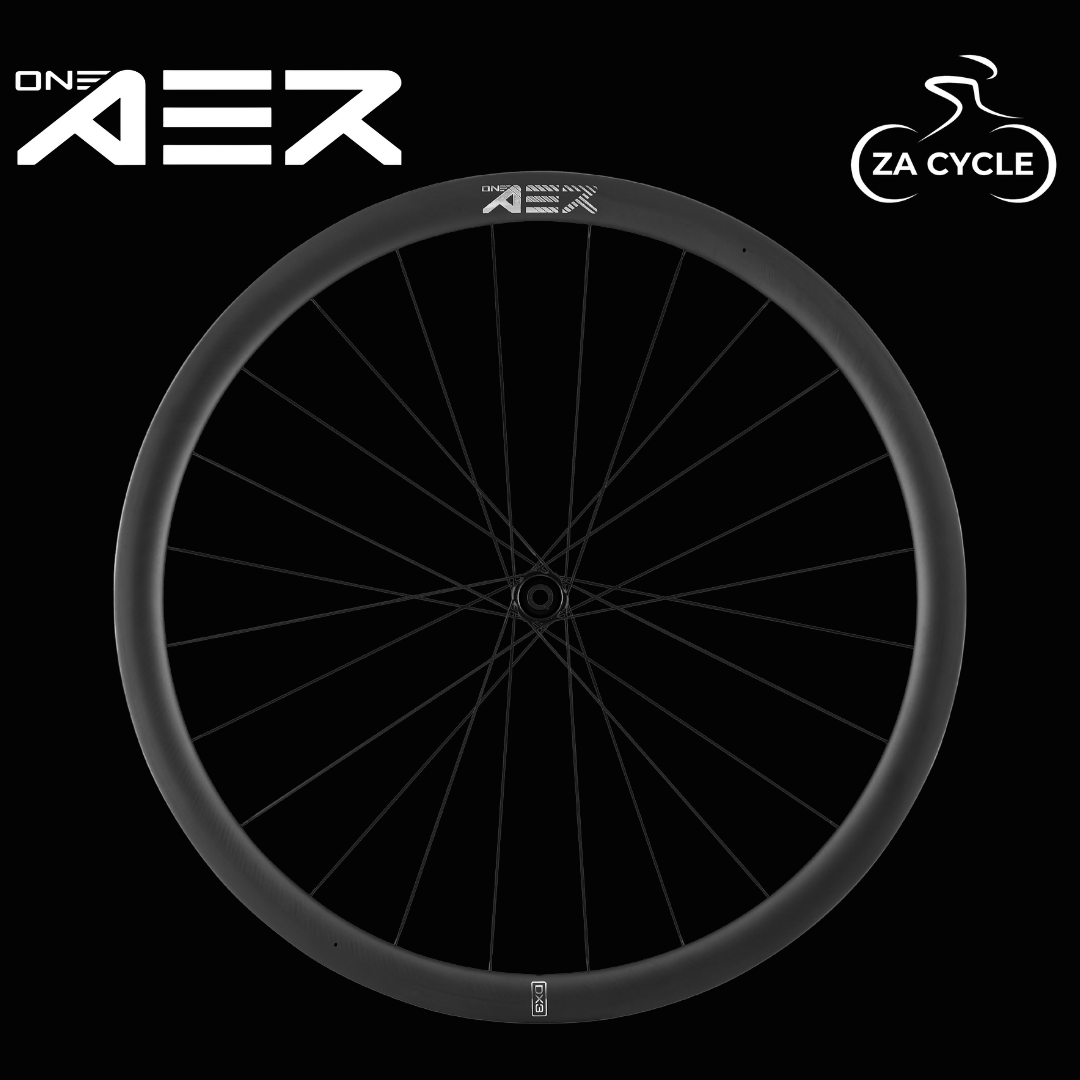

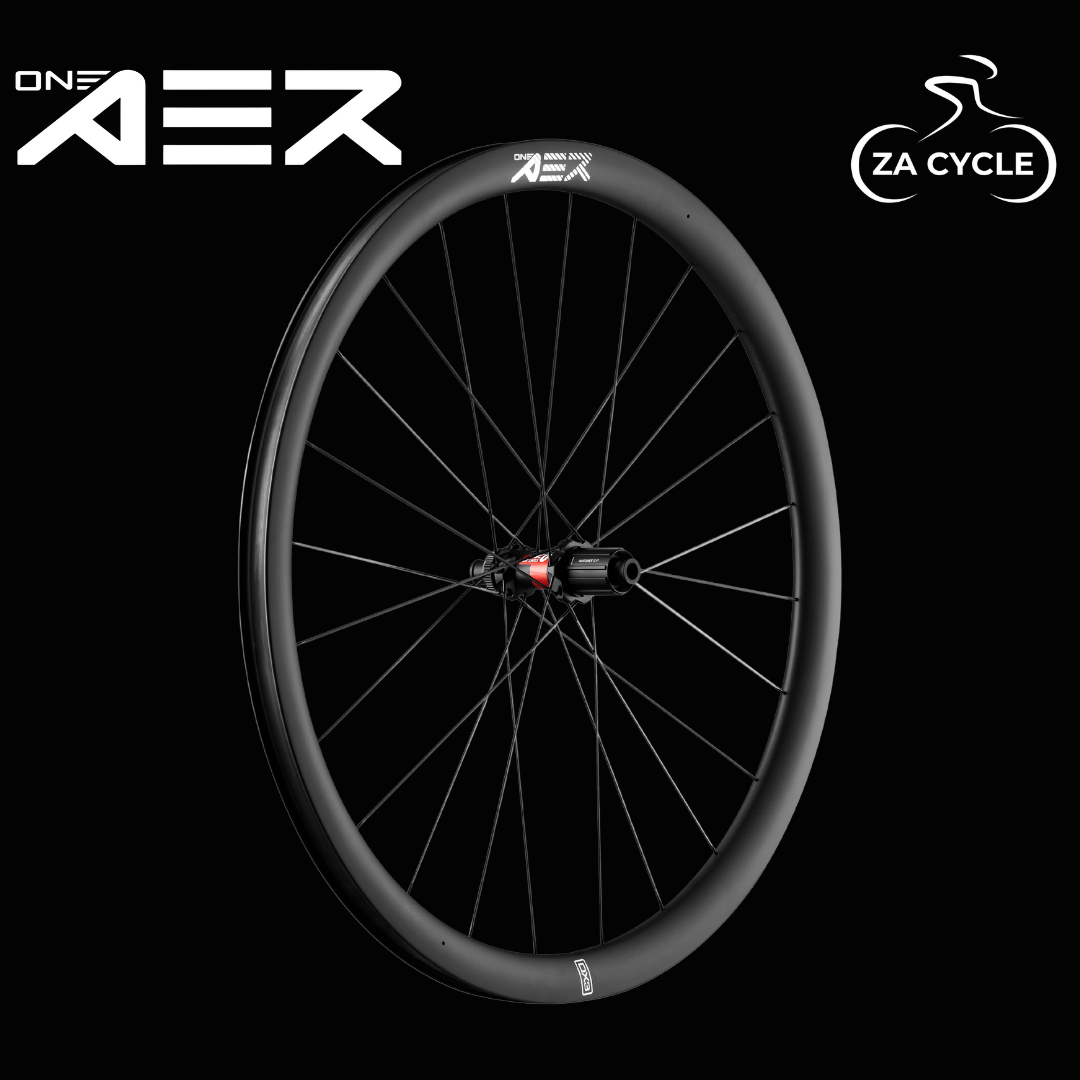

ONEAER DX3 Rev Carbon Wheelset

Overview & Key Features
The ONEAER DX3 Rev. is the latest evolution in the DX series, crafted for riders who demand the ultimate in climbing performance, lightweight design, and modern aerodynamics. Featuring a new-generation 36mm deep and 28.5mm wide rim profile, this wheelset is both stiffer and lighter than previous models — perfect for tackling steep climbs and technical descents with speed and control.

Engineered using advanced carbon layup processes and featuring DT Swiss 240 EXP hubs with Sapim CX-Ray spokes, the DX3 Rev. is optimized for tubeless systems, performs best with 28c tires, and delivers excellent comfort with low rolling resistance.

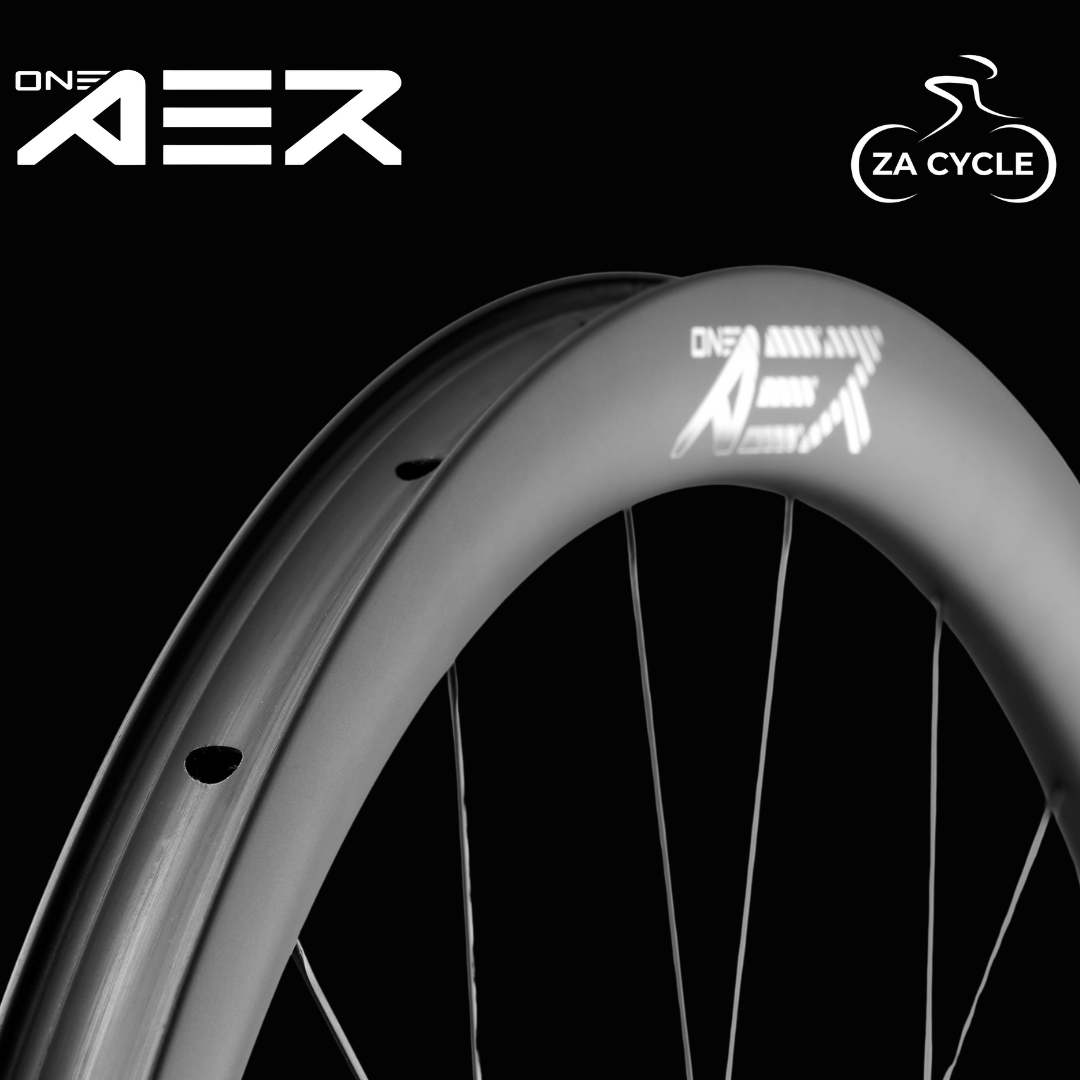

Rim Specifications

• Material: 100% Carbon Fiber
• Rim Depth: 36mm
• External Width: 28.5mm
• Internal Width: 22.5mm
• Tubeless Ready: Yes (rim tape required)
• Tire Compatibility: 700c x 26–32c (best aerodynamics with 28c)
• Maximum Tire Pressure: 120 PSI / 8.3 bar
• Maximum Rider Weight: 120 kg
• Inner Tube Compatible: Yes

Hub & Bearing System

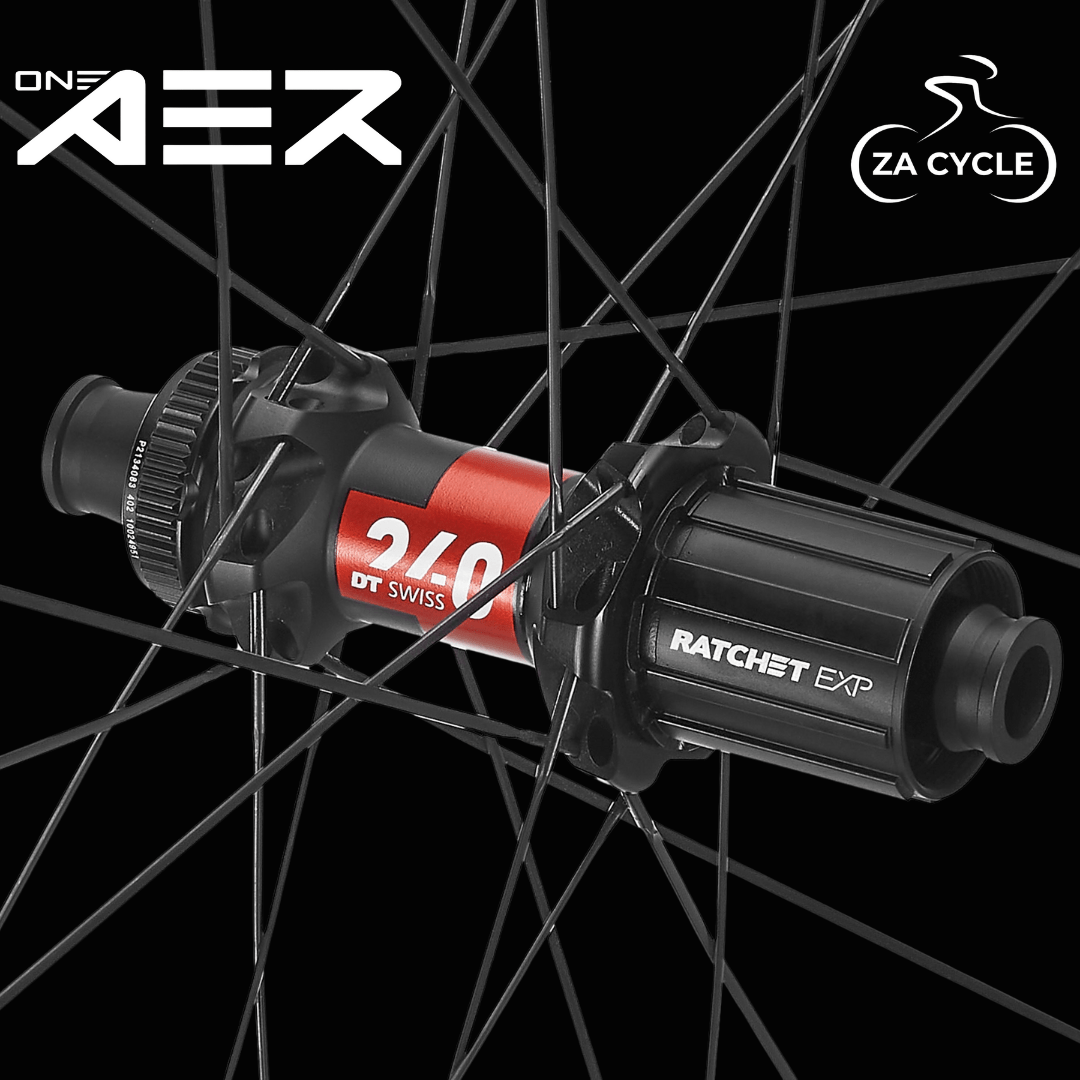

• Model: DT Swiss 240 EXP
• Type: Straight Pull
• Axle Compatibility: 12 x 100mm (front), 12 x 142mm (rear)
• Brake Interface: Center Lock
• Freehub System: Ratchet EXP 36
• Cassette Compatibility:
• Shimano 11–12-speed
• SRAM XDR 12-speed

Spokes & Lacing

• Model: Sapim CX-Ray
• Material: Black Stainless
• Count: 24 front / 24 rear
• Nipples: Internal Alloy Type
• Design Features: Aerodynamic spokes for reduced drag and enhanced ride quality

Why Choose This Wheelset?
The DX3 Rev. is purpose-built for climbers and lightweight performance enthusiasts. With a sub-1300g total weight, wind tunnel-validated aero benefits, and a modern wide rim profile for better handling and comfort, this wheelset offers a true competitive edge. A distinctive silver metal decal adds a clean, high-end visual touch to the raw carbon finish.

Each wheel is hand-assembled, ID-certified, and backed by a lifetime support and repair policy.

What’s Included in the Box?

• ONEAER DX3 Rev. Carbon Wheelset (Front & Rear)
• Tubeless Rim Tape (pre-installed)
• Tubeless Valves
• Silver Metal Decal Finish
• ID Certificate with QR Code
• User Manual

Conquer climbs and descend with confidence. Choose the ONEAER DX3 Rev. for unmatched lightness, precision, and performance. Order yours now.
