OG-EVKIN Qonqi Road Frameset

OG-EVKIN Qonqi Road Frameset

R 34,999.00 ZAR
R 34,999.00 ZAR
Sale Sold out
Frame Size
Color: Silver
Handlebars

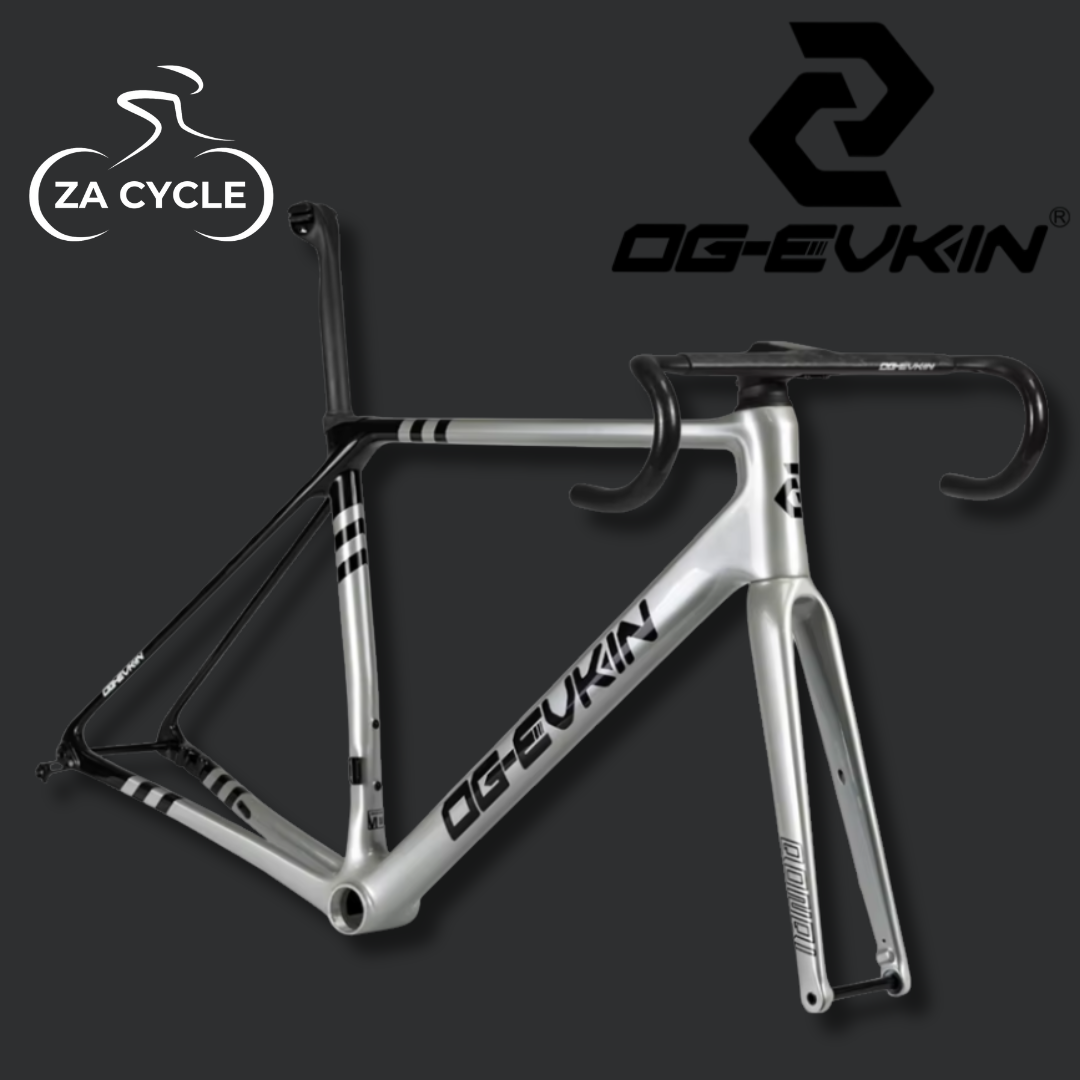

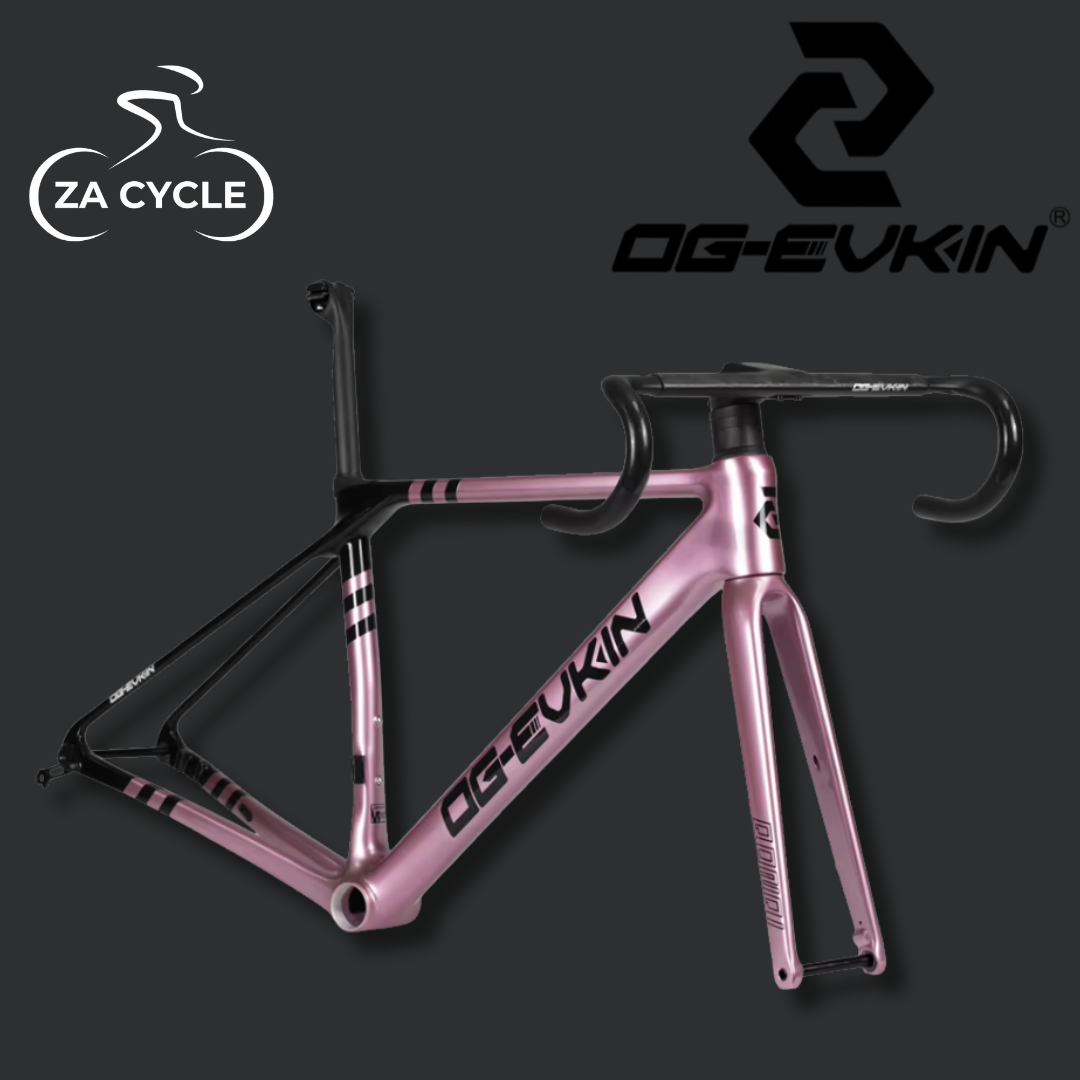

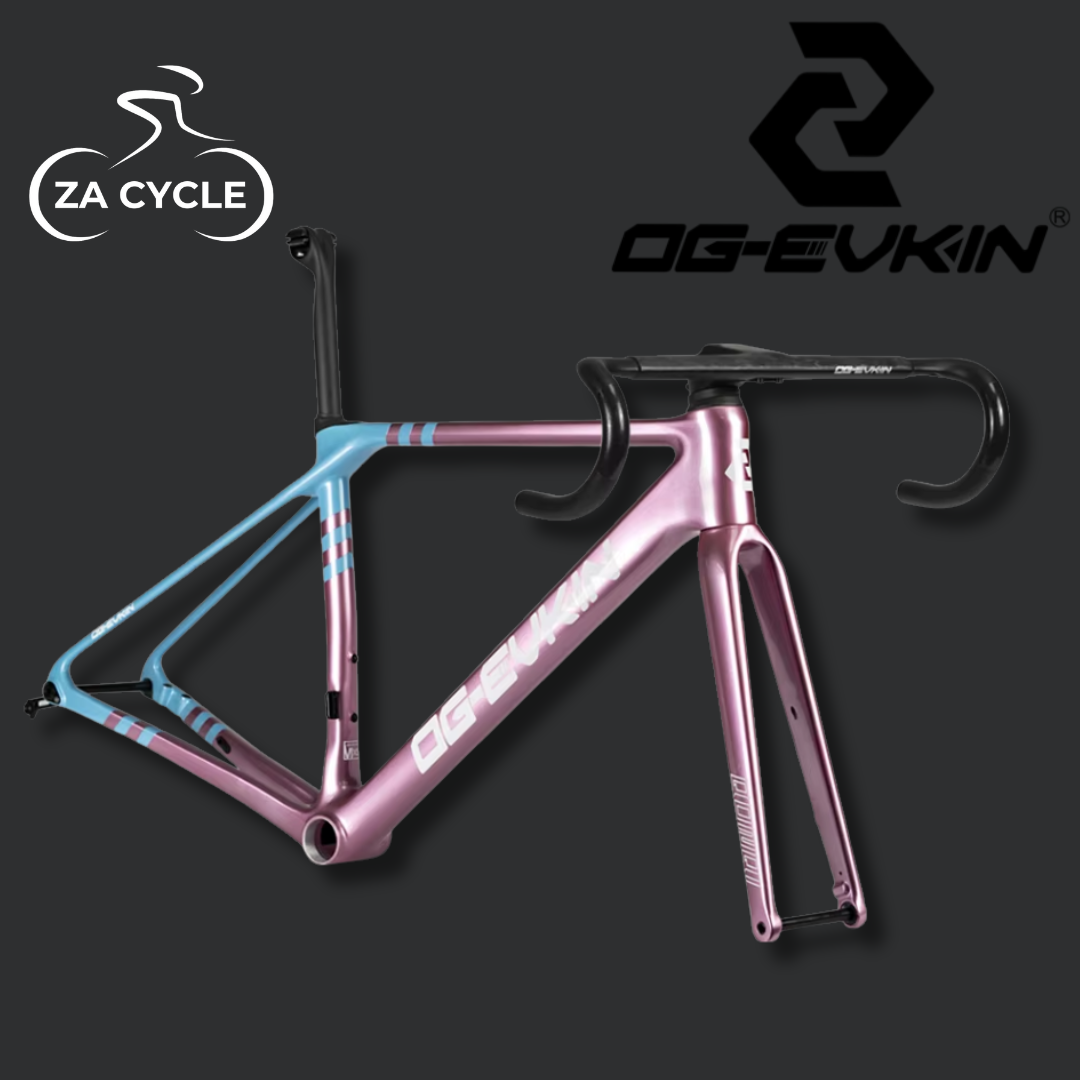

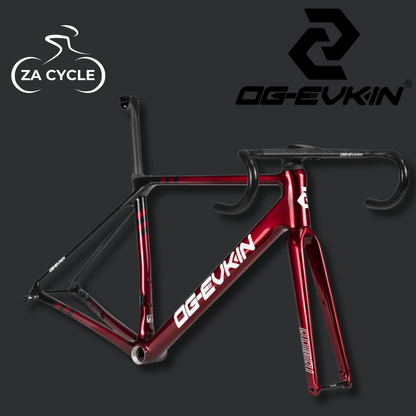

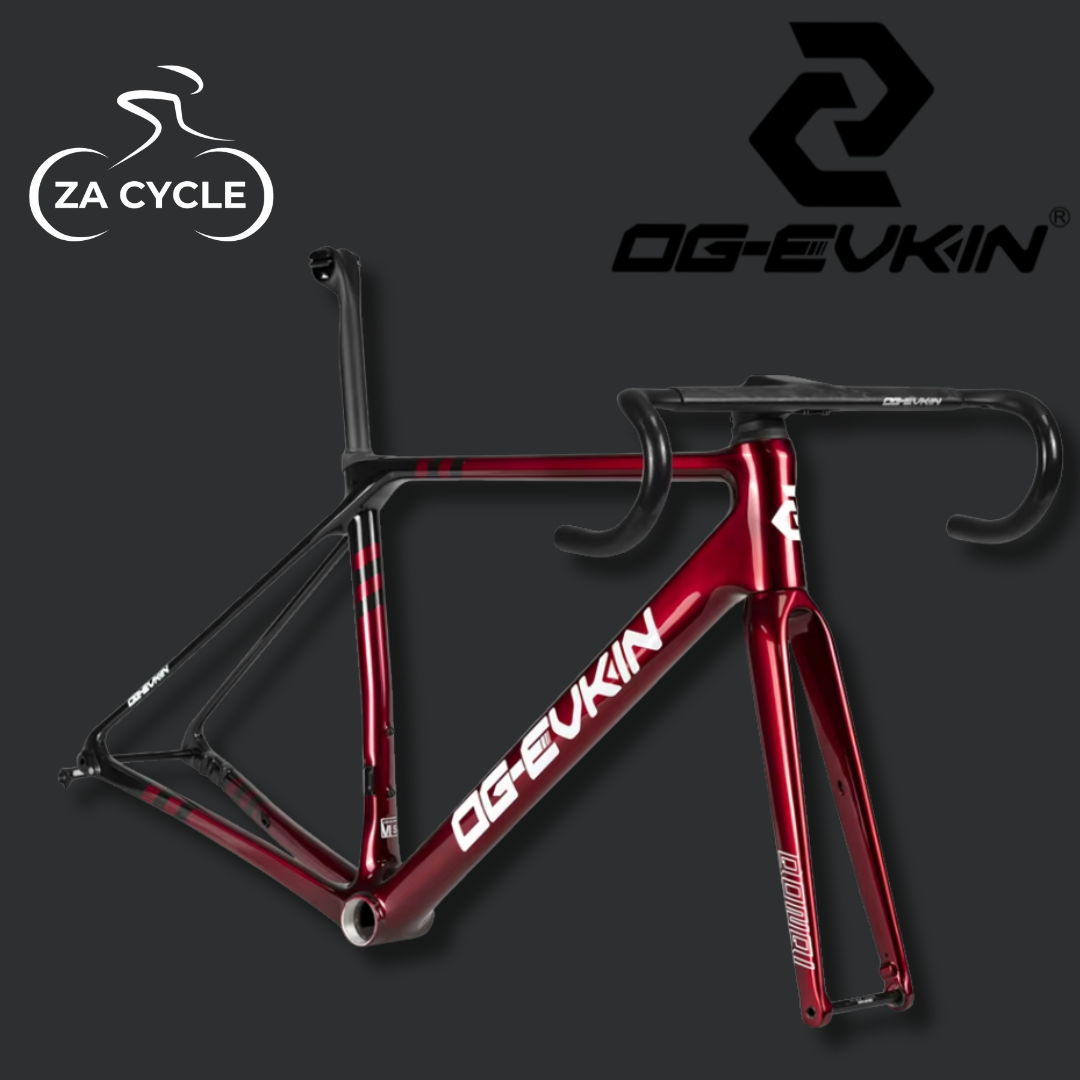

The OG-EVKIN QONQI is a performance-driven carbon road frame engineered from Toray T700 carbon fiber. With a lightweight 880g chassis (XS size), T47 bottom bracket for stiffness, and disc-brake optimized geometry, it's ideal for competitive and enthusiast road cyclists. Di2 and mechanical shifting compatibility makes it futureproof, while a max tire clearance of 28c ensures a smooth ride.

  • Ultralight design: 880g (frame), 400g (fork), 205g (seatpost)
  • Designed for both Di2 and mechanical drivetrains
  • T47 bottom bracket for improved stiffness and durability
  • Includes frame, fork, seatpost, clamp, and derailleur hanger
  • Available in XS/S/M/L for riders from 165 to 195 cm
  • Matte UD finish with multiple color options

Frame & Suspension

  • Frame Material: Toray T700 Carbon
  • Fork: Full carbon, 400g ±10g, disc brake compatible
  • Frame Weight: 880g ±50g (XS)
  • Weave/Finish: UD matte
  • Seatpost Diameter: 27.2mm
  • Axle Sizes: 12x100mm (Front), 12x142mm (Rear)
  • Headtube: 1-1/2” - 1-1/2” tapered

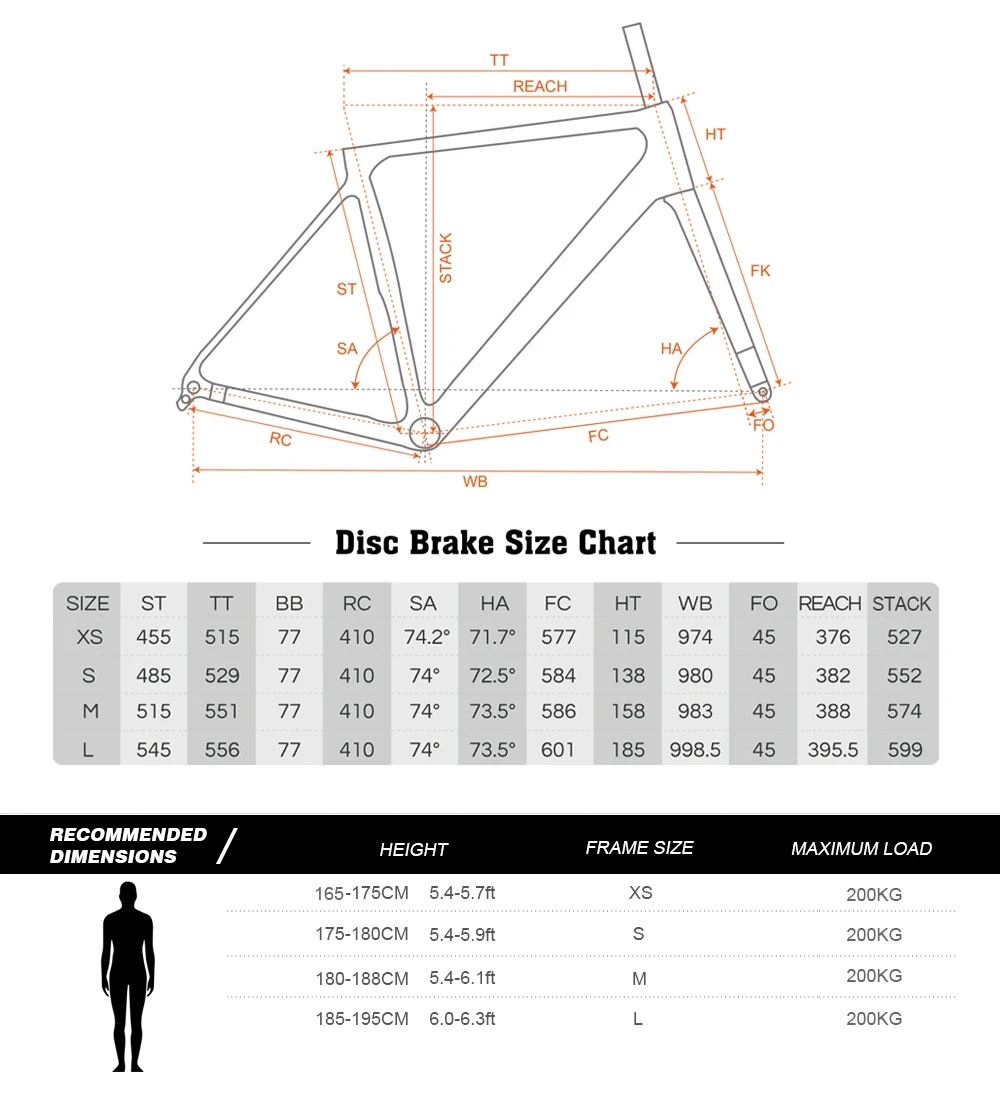

  • Geometry: Performance-oriented with stack/reach tailored per size
  • Fork Offset (FO): 45mm

Drivetrain & Groupset Options

  • Compatible with both electronic (Di2) and mechanical drivetrains
  • Bottom Bracket: T47 threaded, wide compatibility with road cranksets
  • Chainstay Length: 410mm standard across all sizes
  • Seat Tube Angles: 74°
  • Head Angles: XS: 71.7°, S: 72.5°, M/L: 73.5°

Braking System

  • Disc brake optimized frame and fork
  • Rotor compatibility: 140mm standard
  • Flat mount disc caliper interface

Wheels & Tires

  • Axle Compatibility: 12x100mm front / 12x142mm rear thru-axles
  • Tire Clearance: Max 28C
  • Compatible with most modern disc brake road wheelsets

Cockpit & Handling

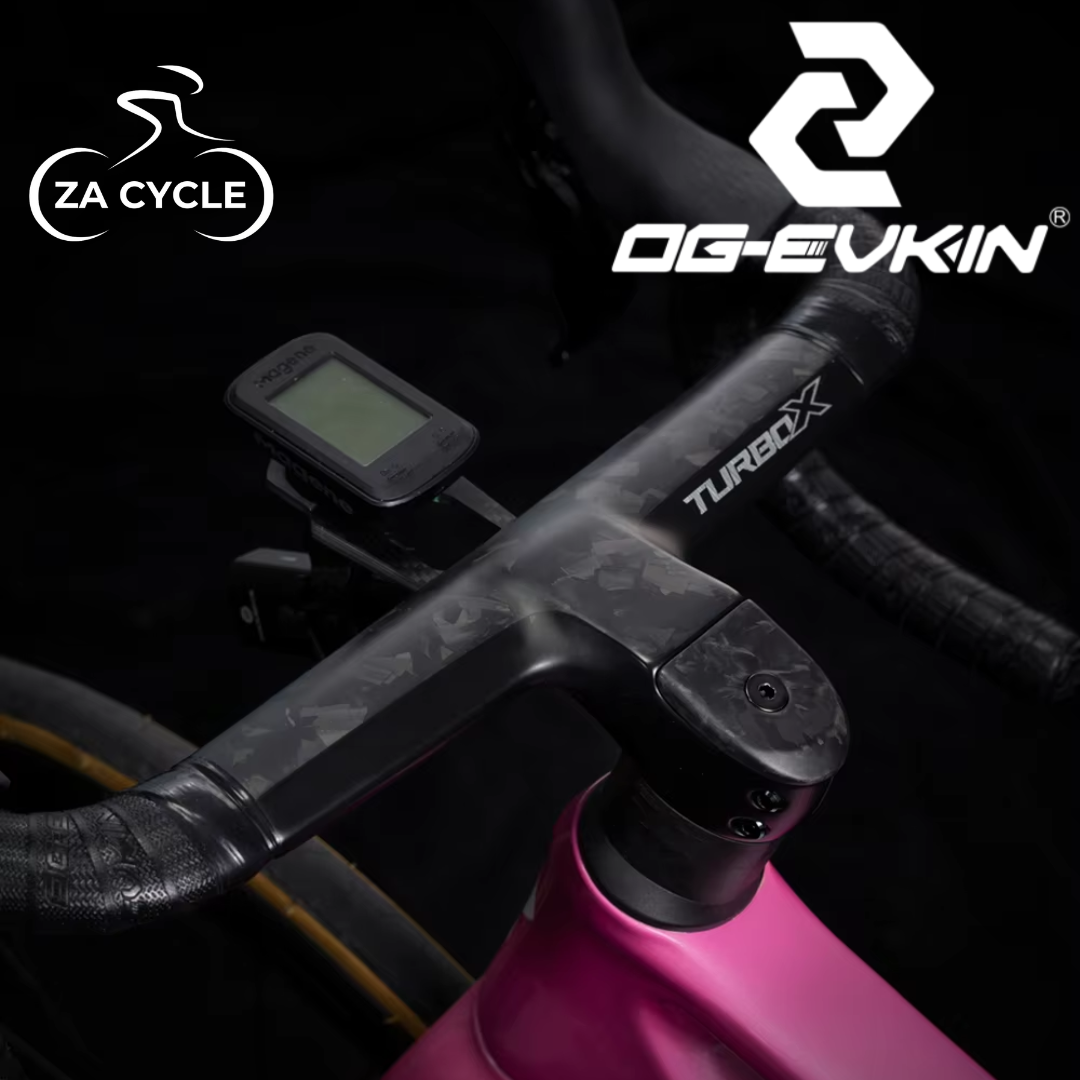

  • OG-EVKIN HB-TURBO
  • Integrated Aero cockpit system
  • Toray T800 carbon
  • Widths: 360–440mm
  • Stem lengths: 70–120mm
  • Drop: 128mm | Reach: 84mm | Flare: 3° | Stem angle: -10°

Additional Components & Accessories

  • Included: Frame, Fork, Seatpost, Seatpost Clamp, Derailleur Hanger
  • Headset: Integrated 1-1/2" upper & lower (52mm)

Why Choose This Bike?
The QONQI is a no-compromise, lightweight carbon road platform with excellent drivetrain flexibility and race-ready geometry. Whether building a high-end mechanical or electronic road setup, its T47 BB and robust disc system offer superior performance and easy maintenance.

What’s Included in the Box?

  • OG-EVKIN QONQI Carbon Frame
  • OG-EVKIN TurboX Carbon Handlebar
  • Carbon Fork
  • Carbon Seatpost (27.2mm)
  • Seatpost Clamp
  • Derailleur Hanger
  • Headset
  • Carbon Computer Mount
  • 2-Year Manufacturer Warranty


Upgrade your ride with the OG-EVKIN QONQI. Select your size and color today—build your dream bike with high-performance carbon precision.
