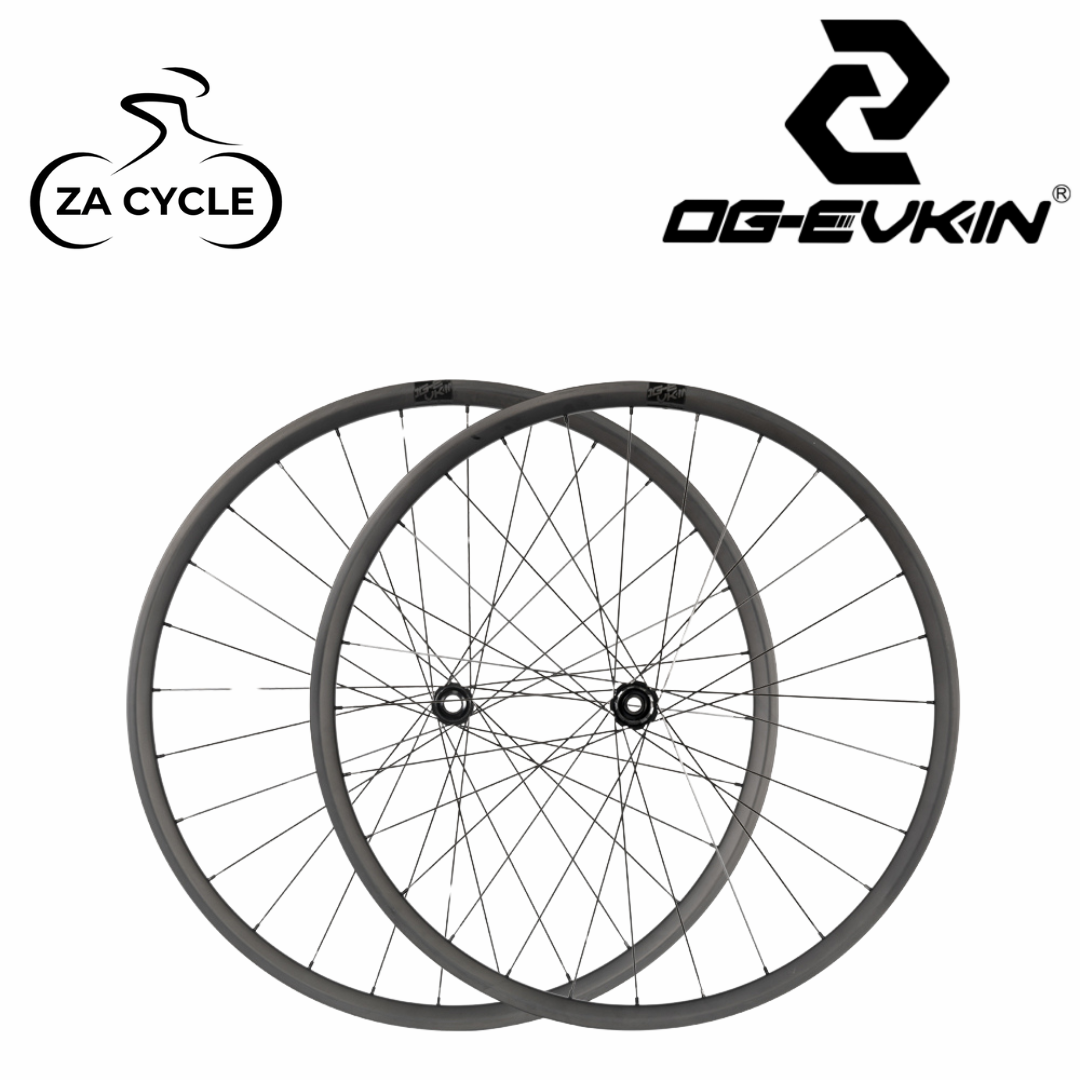

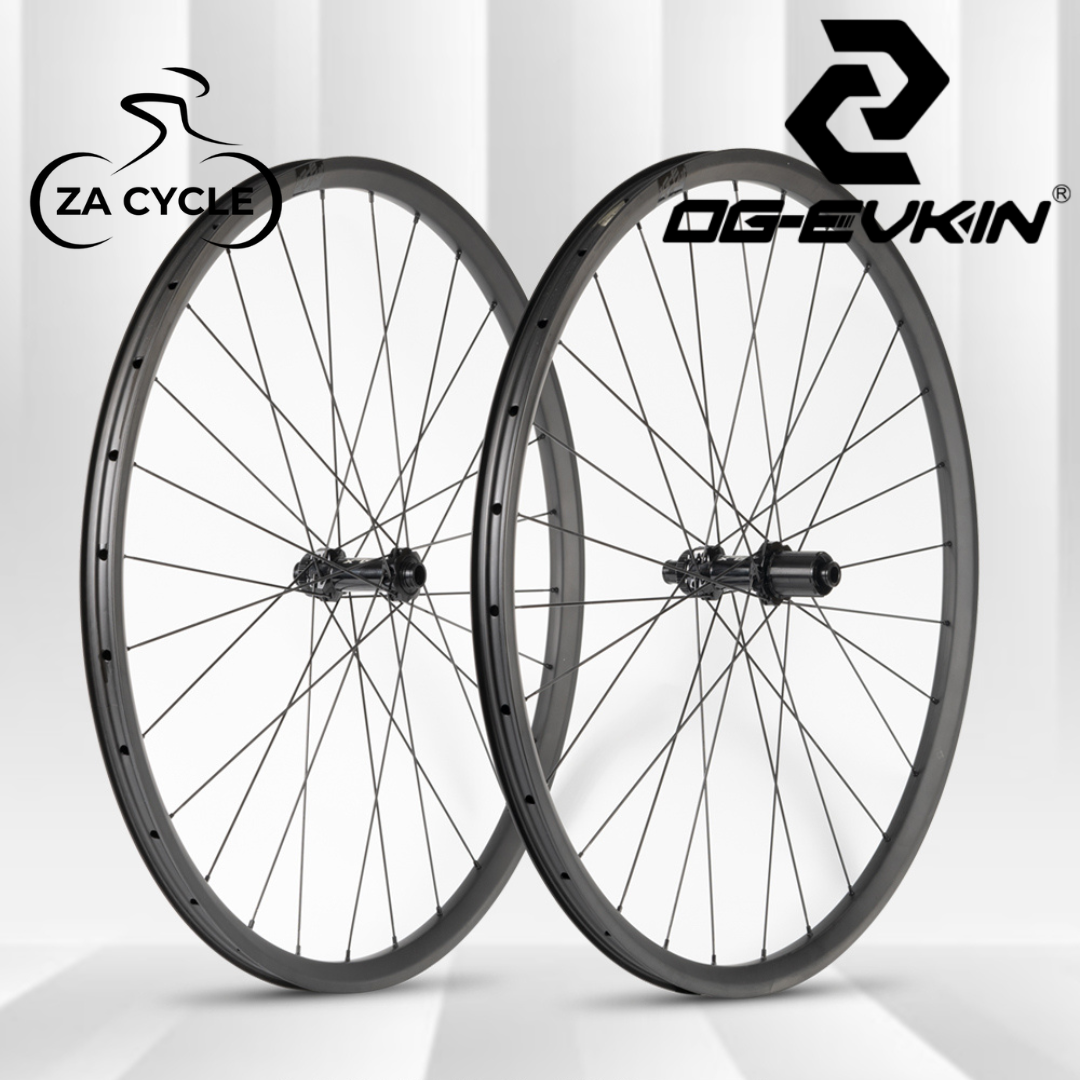

OG-EVKIN MW-002 Carbon MTB Wheelset 29er

Overview & Key Features
The OG-EVKIN MW-002 is a lightweight carbon MTB wheelset designed for 29er mountain bikes. Built with T800 carbon, it features a 23.5mm rim depth, 30mm outer width, and 26mm inner width—perfect for modern trail and XC tires. Compatible with Shimano HG/MS and SRAM XD driver bodies, the straight-pull hubs and Pillar Aero 1423 spokes ensure reliable performance across rough terrain.

Key Features:

• T800 carbon construction for strength and weight savings
• 23.5mm rim depth for XC/trail versatility
• 30mm outer width / 26mm inner width for wide tire support
• Clincher/tubeless-ready design
• 6-bolt disc brake compatibility
• Thru-axle spacing: 15x110mm (front) / 12x148mm Boost (rear)
• 130kg max rider load
• Compatible with Shimano HG/MS and SRAM XD driver bodies

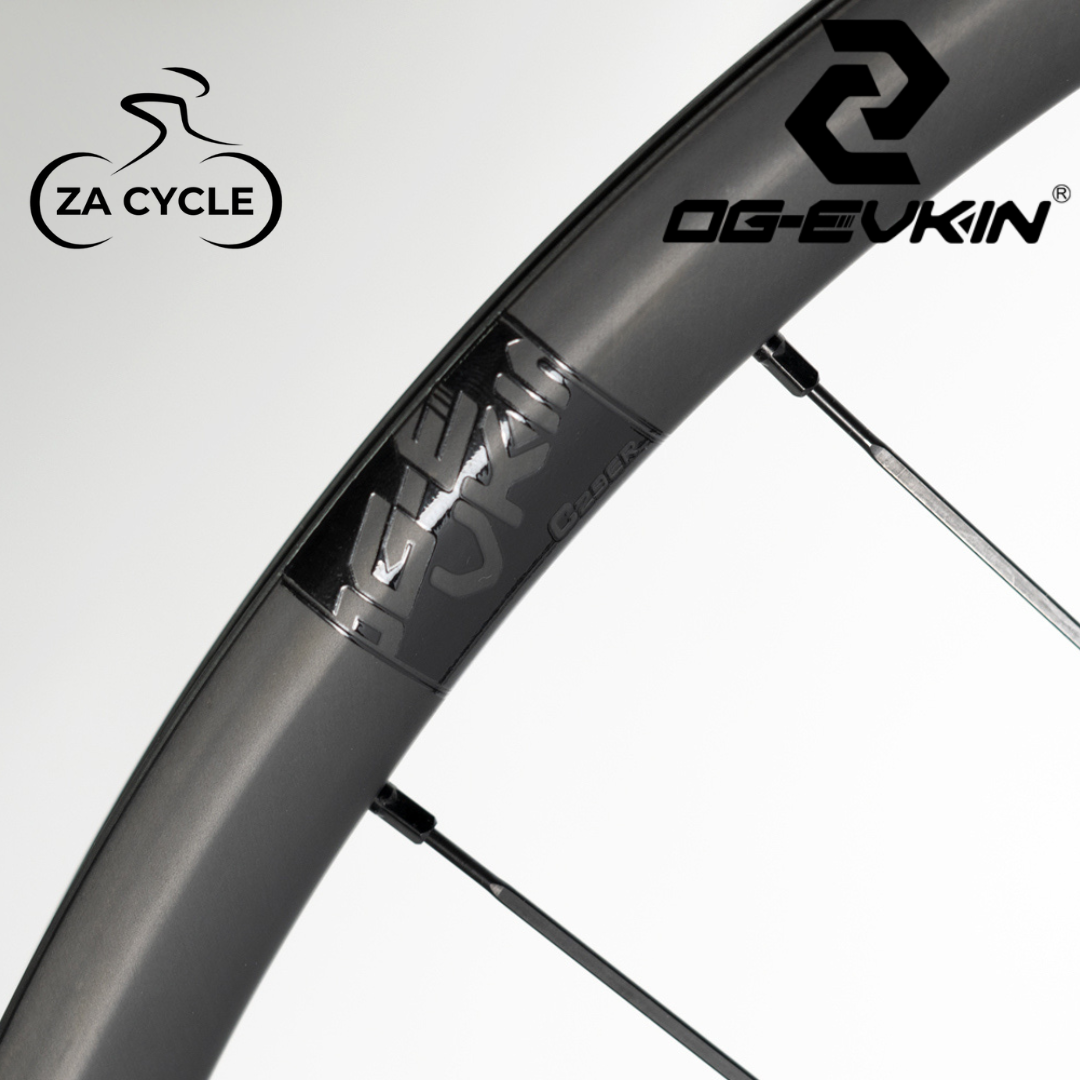

Rim Specifications

• Material: Carbon T800
• Size: 29er
• Rim Depth: 23.5mm
• Outer Width: 30mm
• Inner Width: 26mm
• Effective Rim Diameter (ERD): 597mm
• Tire Compatibility: Clincher / Tubeless-ready

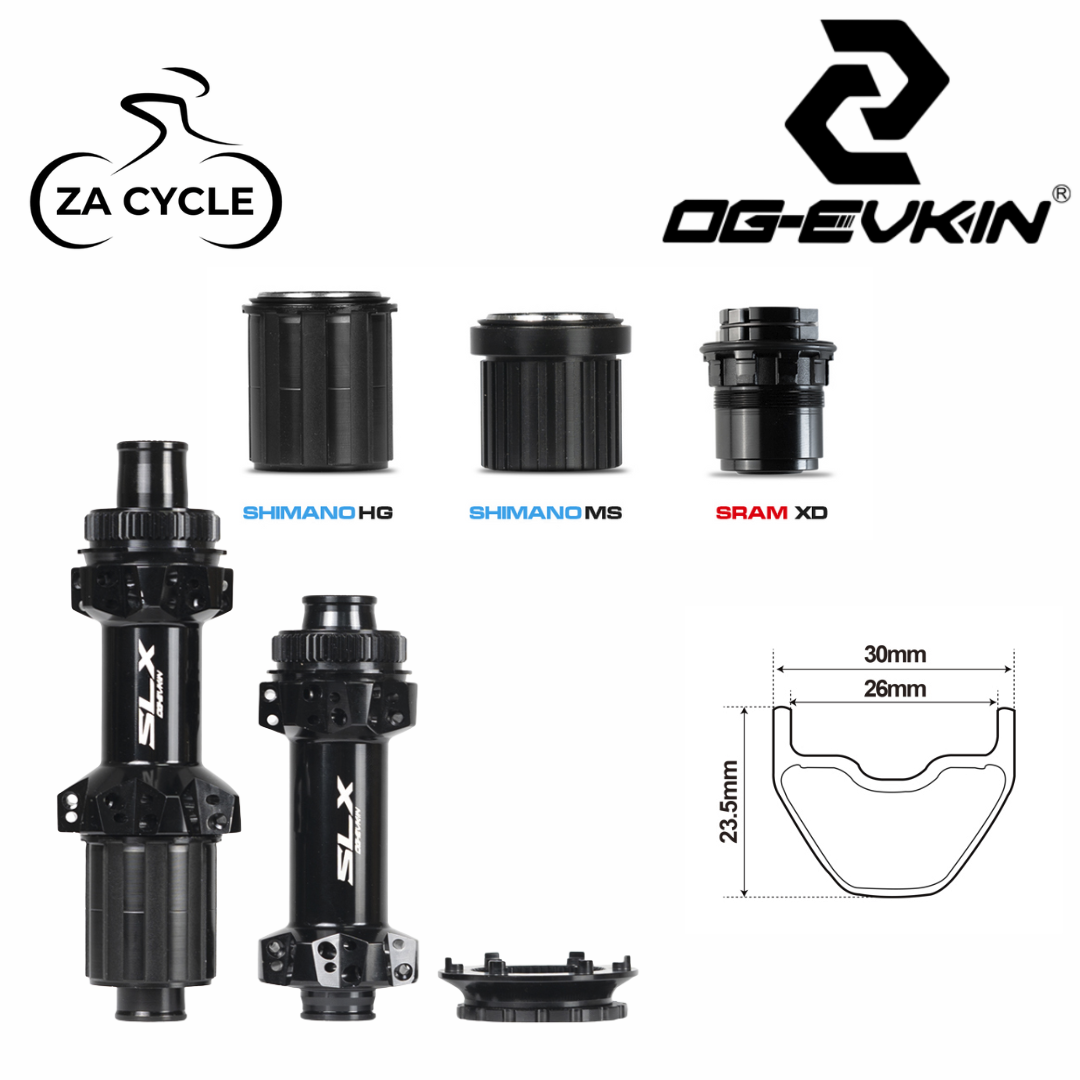

Hub & Bearing System

• Model: OG-01Hub-11s (24H front / 24H rear)
• Axle Size: 15x110mm (front) / 12x148mm Boost (rear)
• Brake Compatibility: 6-bolt disc
• Driver Body Options: Shimano HG/MS, SRAM XD

Spokes & Lacing

• Spoke Model: Pillar Aero 1423
• Spoke Type: Straight-pull
• Nipples: Aluminum

Weight & Capacity

• Wheelset Weight: 1600g ±15g
• Max Rider Load: 130kg

Why Choose This Wheelset?
The OG-EVKIN MW-002 is a performance-oriented MTB wheelset that blends lightweight carbon construction, wide rim profiles, and modern disc brake compatibility. Perfect for riders looking to upgrade to a durable, responsive wheelset for trail and XC adventures.

Conquer the trails with the OG-EVKIN MW-002 carbon wheelset. Order today and experience the difference in speed and control!
