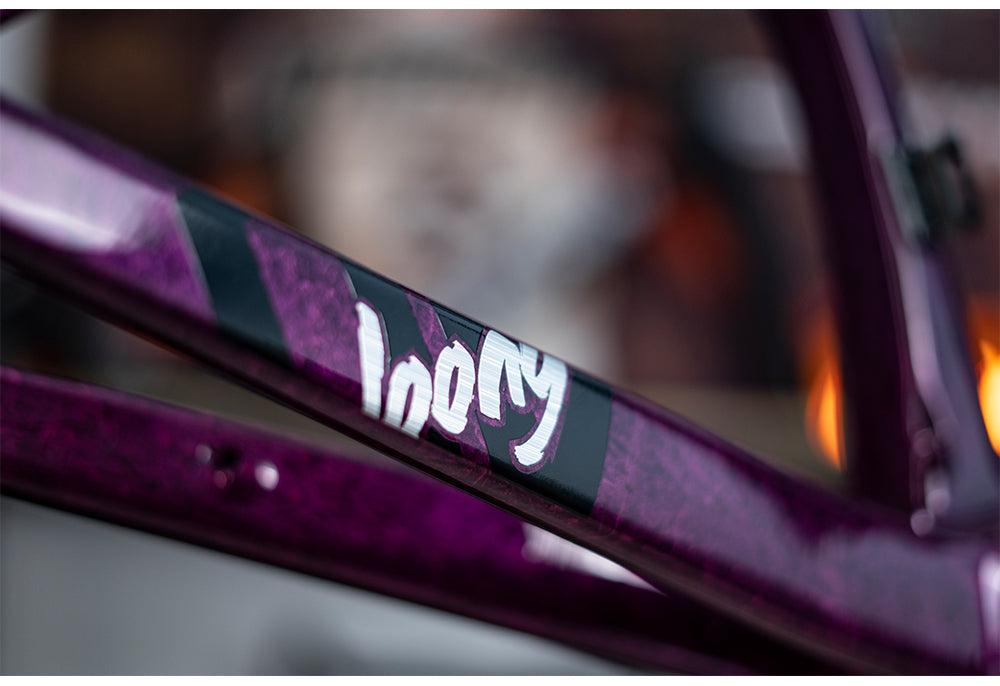

OG-EVKIN LOONG UCI Road Frameset

Overview & Key Features
The OG-EVKIN LOONG is a UCI-certified carbon road frameset engineered for competitive cyclists and high-performance builds. Featuring a lightweight Toray T800 carbon construction, the LOONG supports modern 12x100/12x142mm thru-axle standards, disc brakes, and up to 30C tire clearance. The frameset includes a matching fork, seatpost, handlebar, and essential components for a complete setup.

Key Features:

• Lightweight Toray T800 carbon construction
• T47 bottom bracket for stiffness and easy maintenance
• 12x100mm/12x142mm thru-axle disc brake system (140mm rotor compatible)
• Max tire clearance: 700x30C
• Internal cable routing for Di2 and mechanical groupsets
• UCI certified

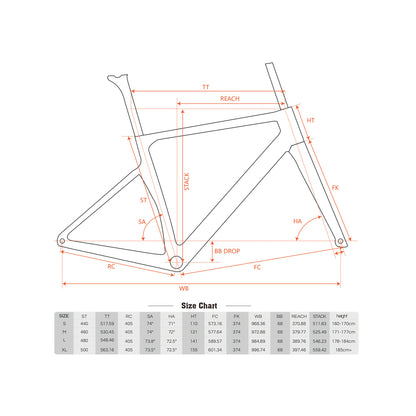

Frame Specifications

• Brand: OG-EVKIN
• Model: LOONG
• Material: Toray T800 Carbon
• System: Disc Brake (140mm rotor)
• Headset: 1-1/2" - 1-1/2" (Straight head tube, 52mm)
• Bottom Bracket: T47
• Axle Size: 12x100mm (front) / 12x142mm (rear)
• Max Tire Size: 700x30C
• Weight: 1570g ±50g (Size M)

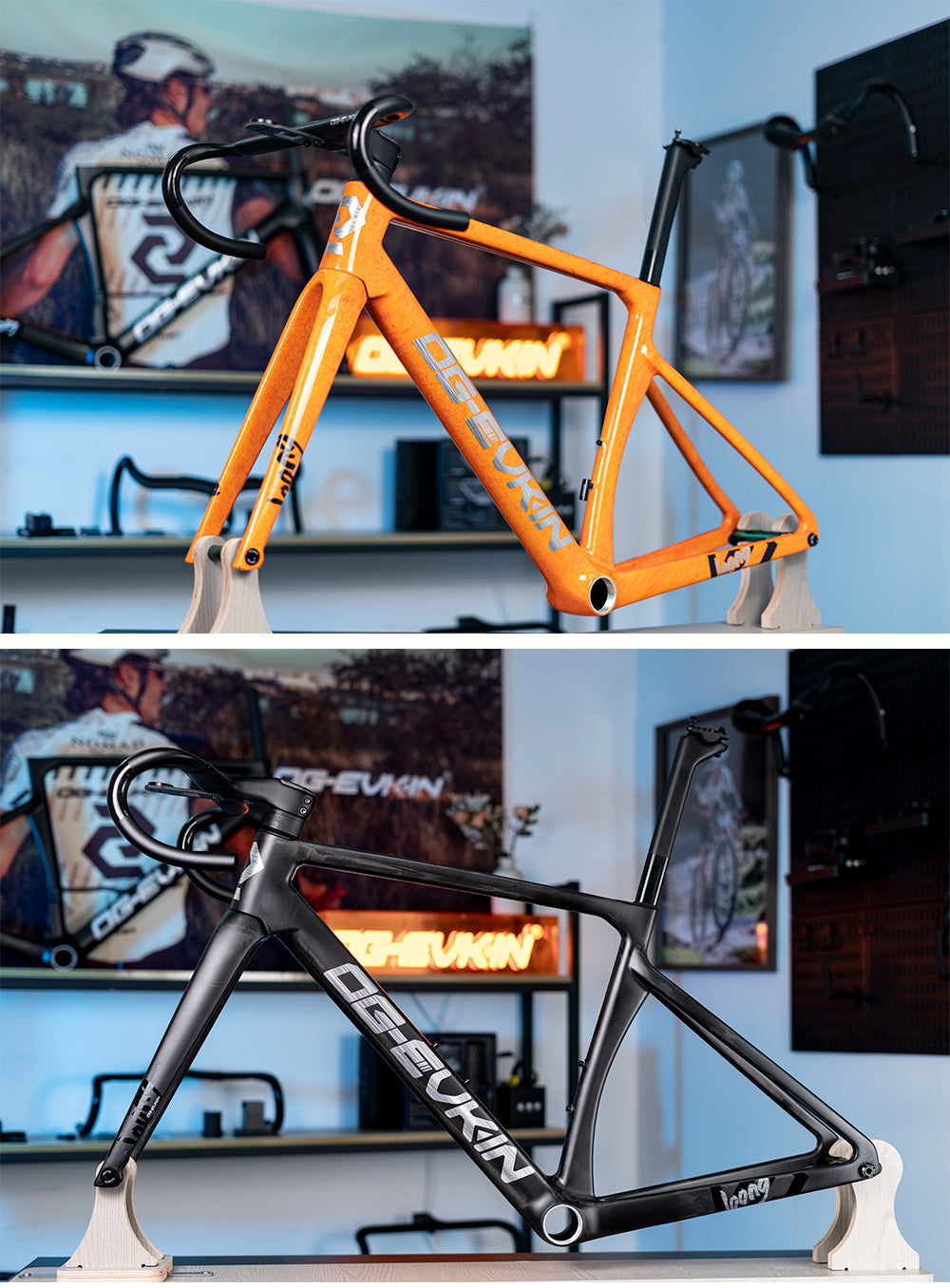

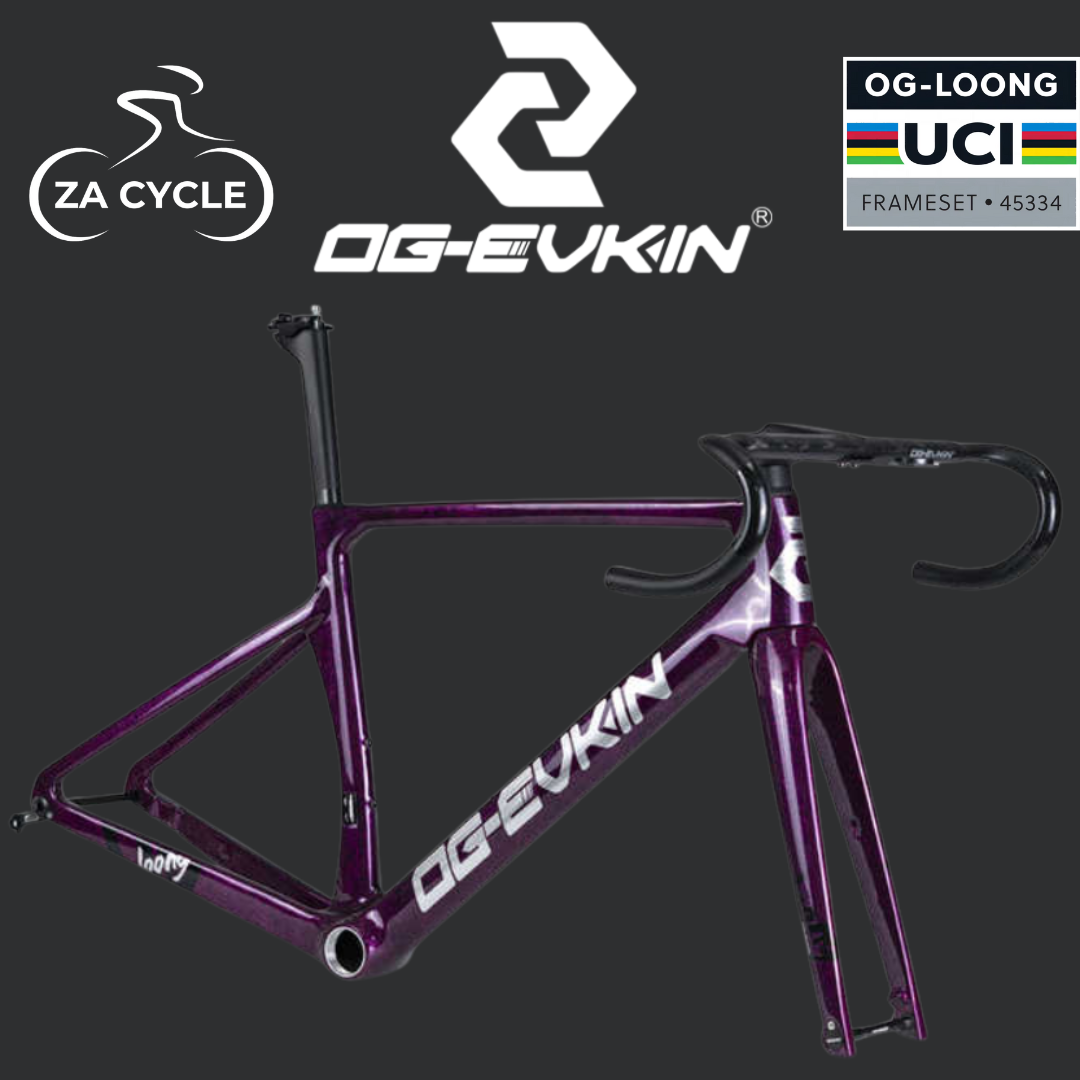

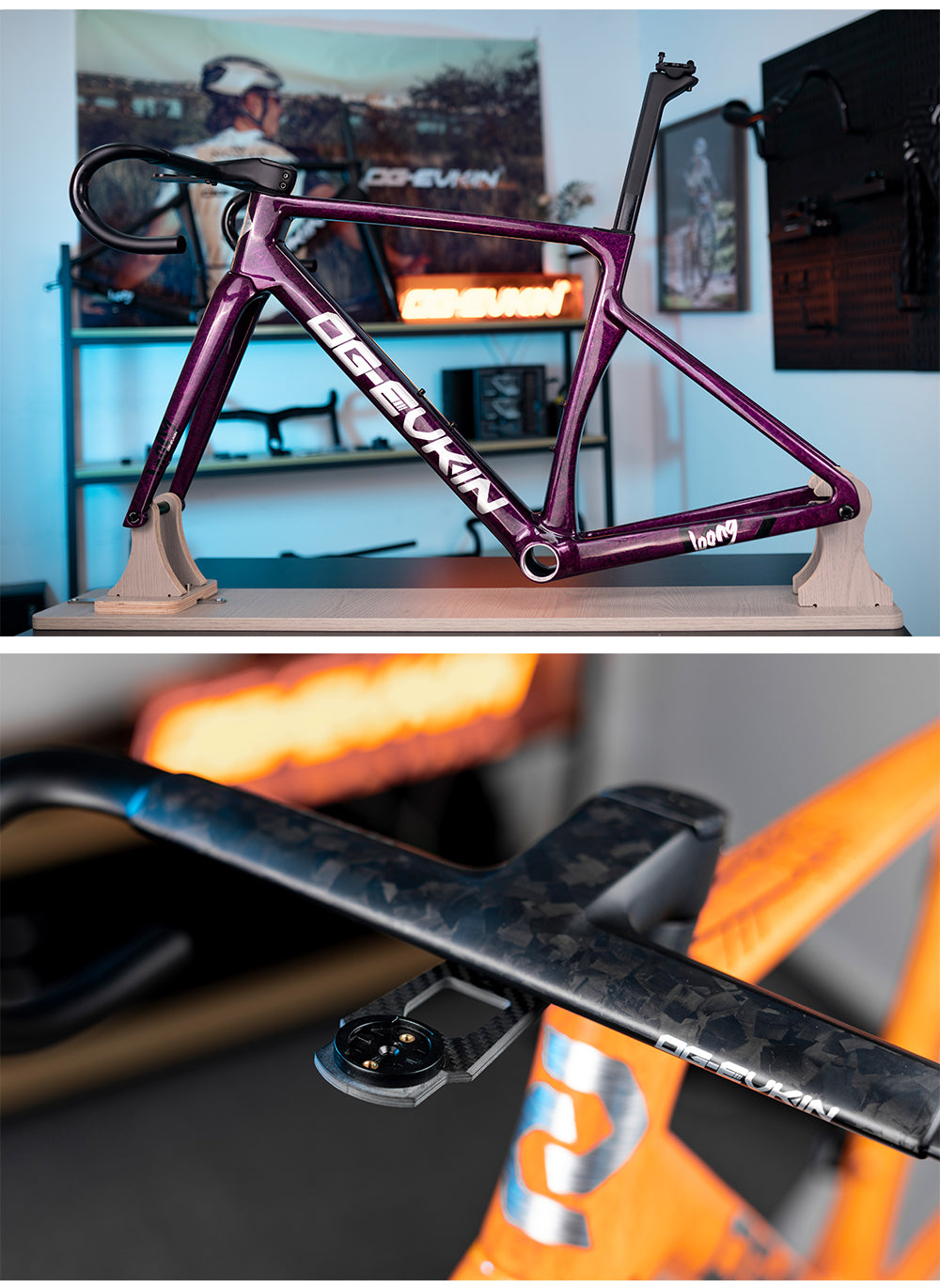

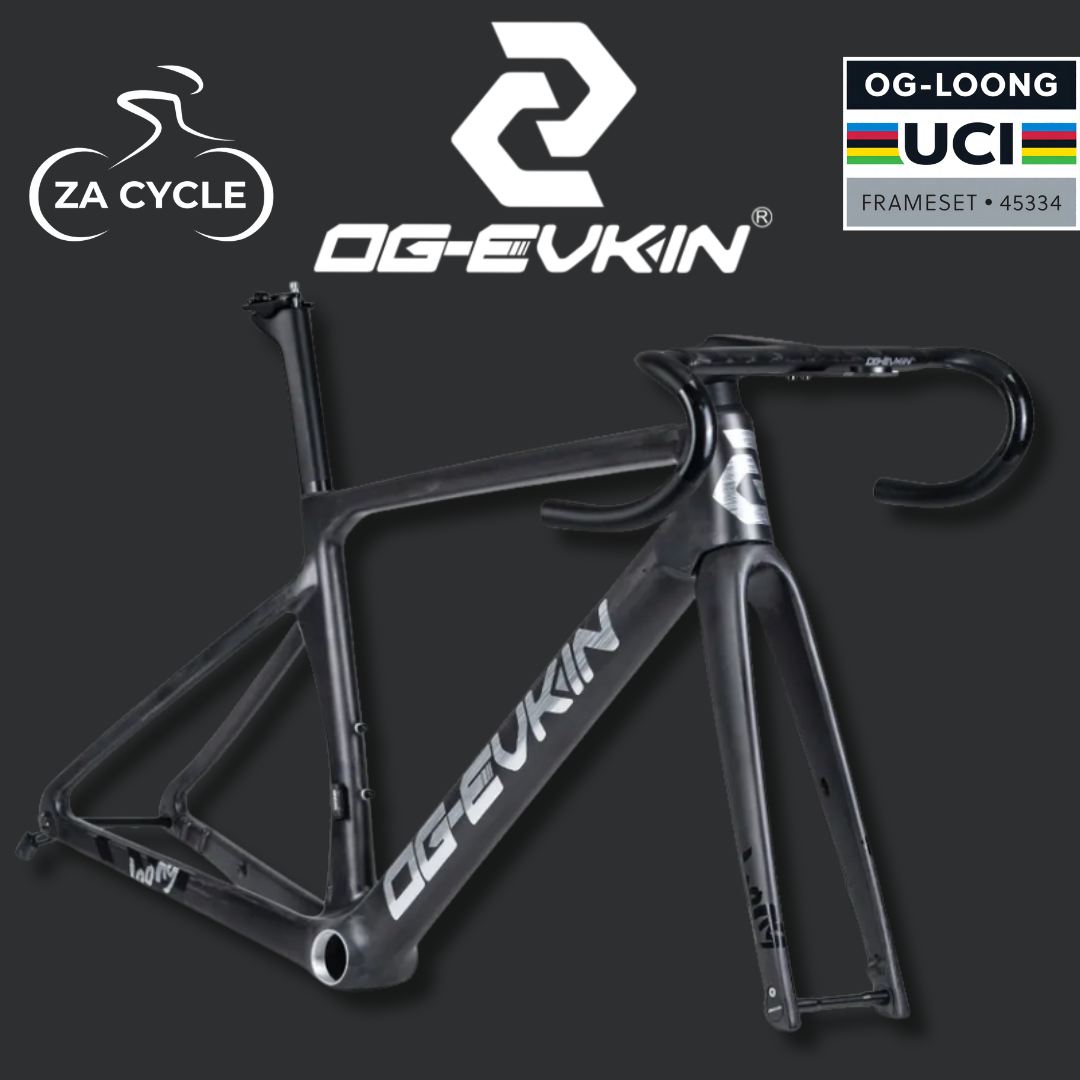

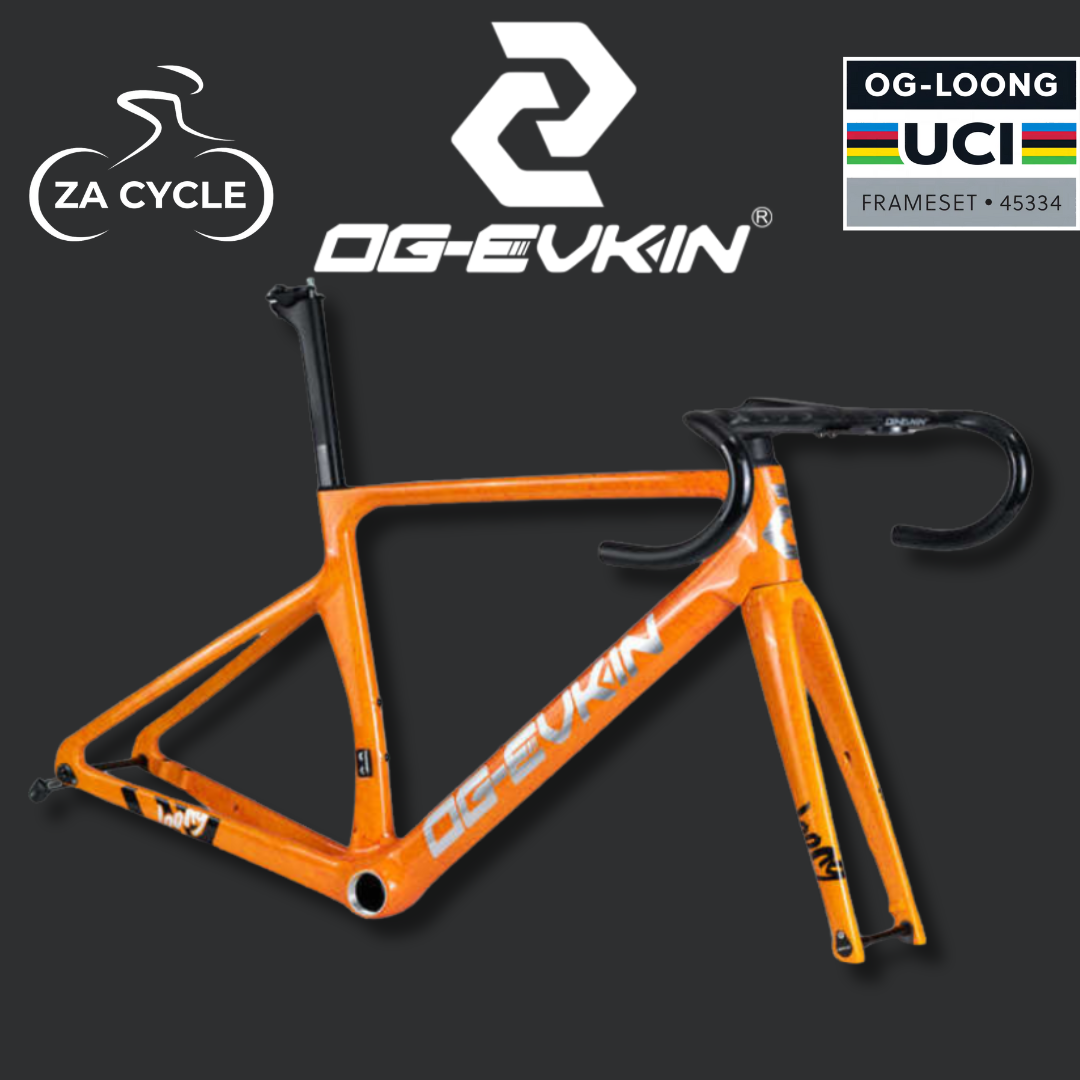

• Color Options: Orange, Purple, Black
• Warranty: 2 years
• Certification: UCI Certified

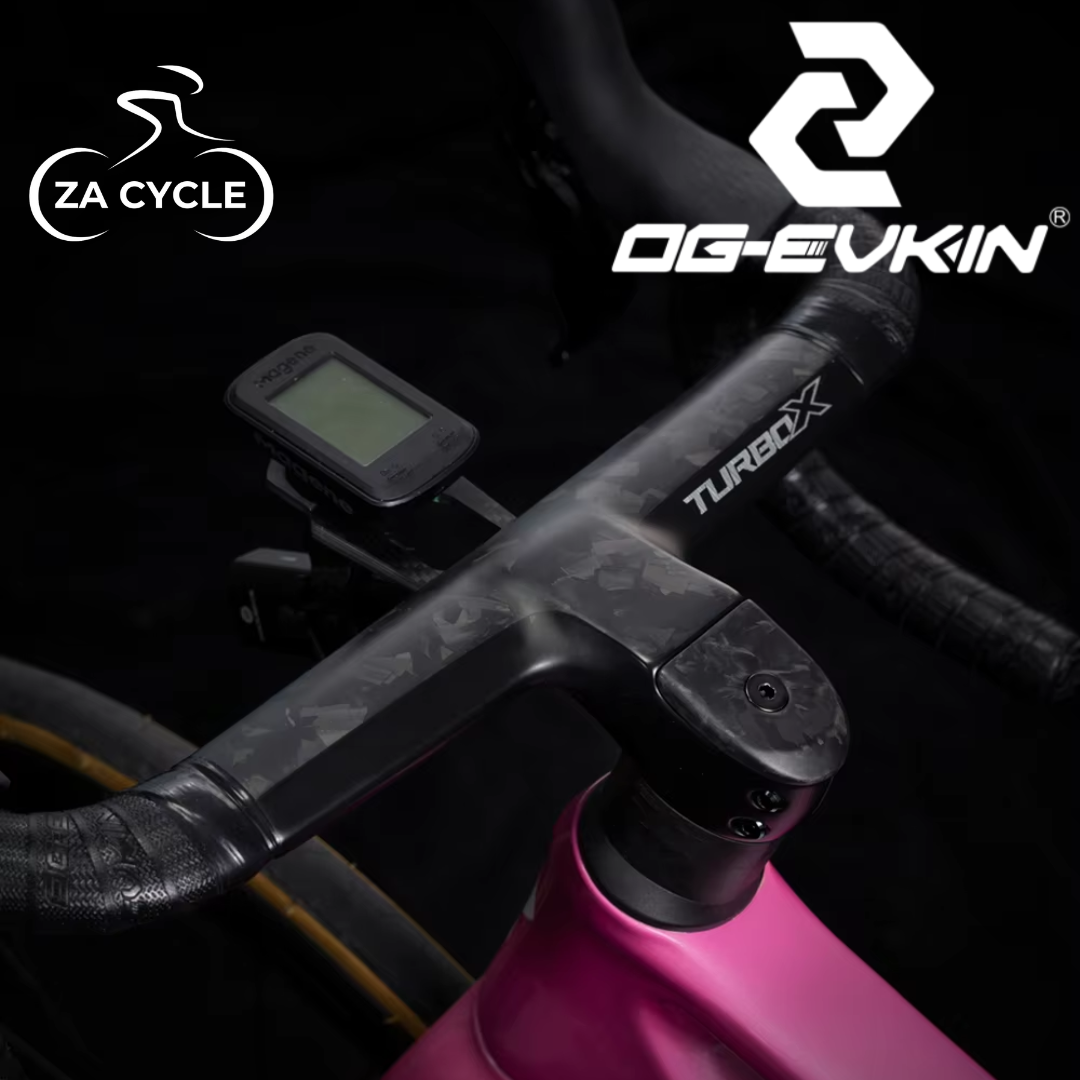

Handlebar Specifications

• Brand: OG-EVKIN
• Model: HB-Turbo
• Material: Toray T800 Carbon
• Width Options: 360 / 380 / 400 / 420 / 440mm
• Stem Length Options: 70 / 80 / 90 / 100 / 110 / 120mm
• Drop: 128mm
• Reach: 84mm
• Flare: 3°
• Stem Angle: -10°
• Weight (420x80mm): 350g ±15g

What’s Included in the Box?

• Frame
• Fork
• Seatpost
• Clamp
• Hanger
• Handlebar
• Headset (including spacers)
• Thru-axles (12x100mm & 12x142mm)
• Carbon computer mount

Why Choose This Frameset?
The OG-EVKIN LOONG is the ideal platform for building a lightweight, responsive road or cyclocross bike. With T800 carbon construction, modern standards, and UCI certification, it's ready for race day performance or endurance rides.

Upgrade your build with the OG-EVKIN LOONG frameset. Order now to secure your high-performance carbon platform!
