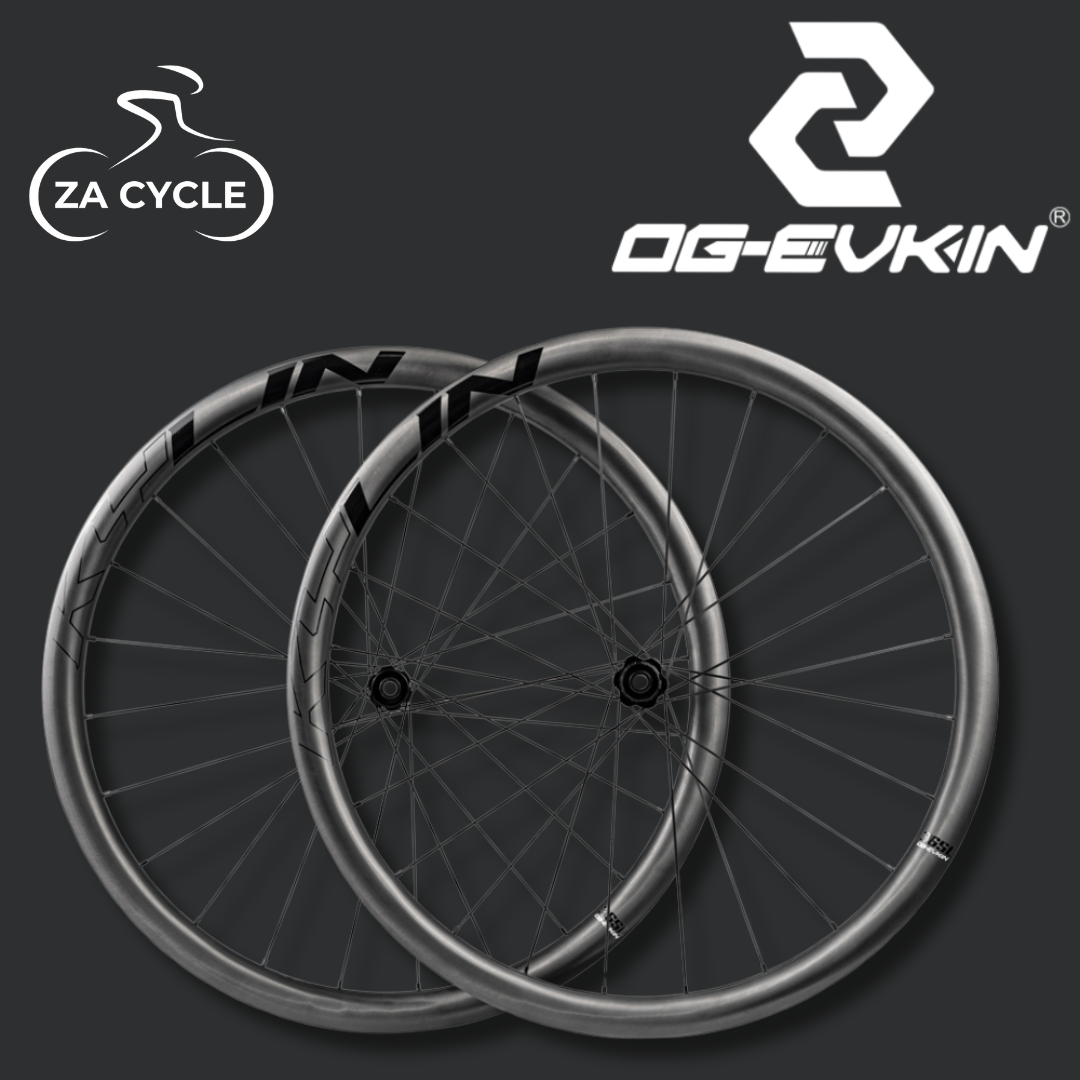

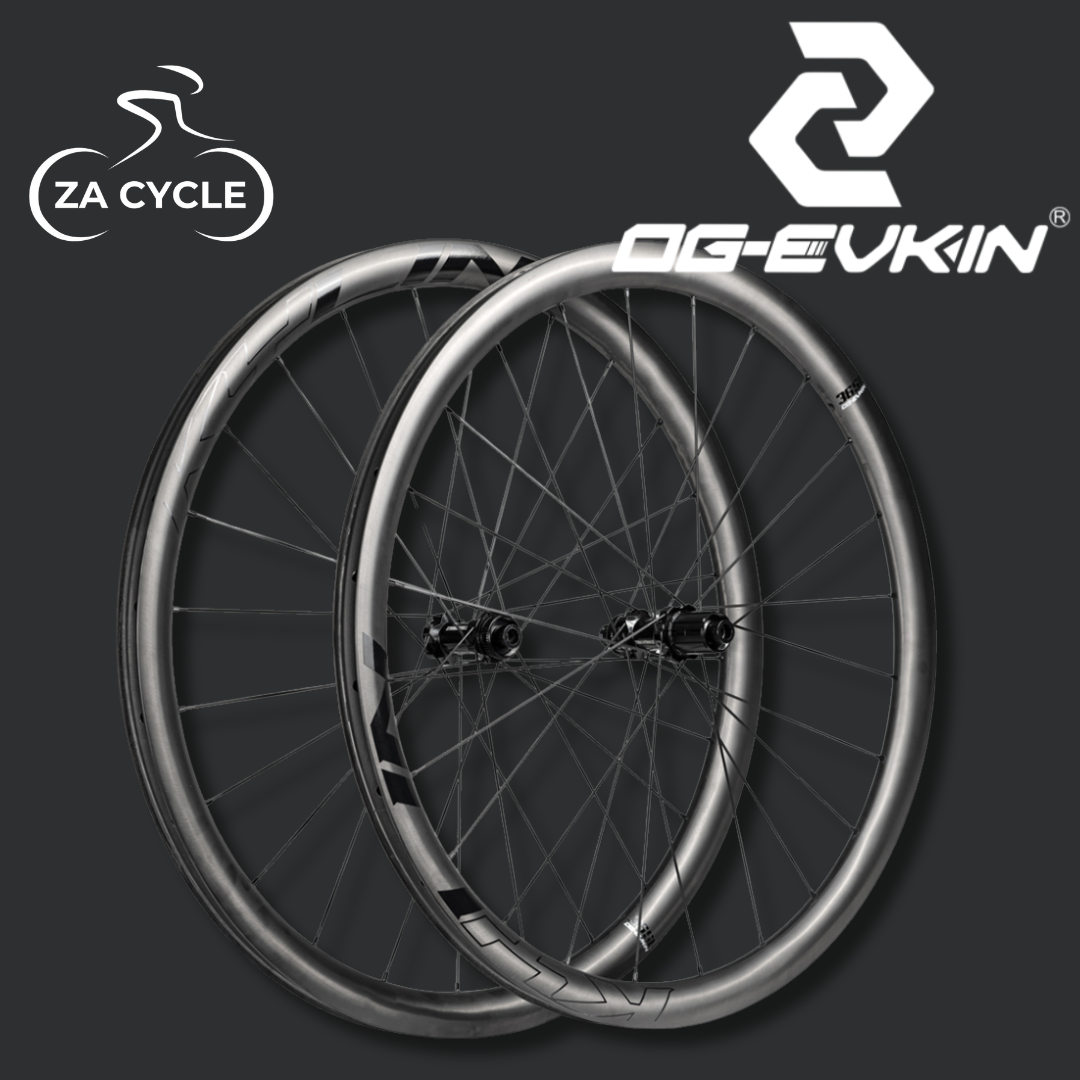

OG-EVKIN KYLIN Carbon Gravel Wheelset

Overview & Key Features
The OG-EVKIN KYLIN GW-D36SL is a high-performance carbon gravel wheelset designed for riders who demand lightweight construction, wide tire support, and versatile disc brake compatibility. Crafted from T800 carbon, the 36mm-deep rims feature a 30mm external and 25mm internal width, perfect for 45C tires. The tubeless-ready design ensures a smooth, low-pressure setup, while the 6-bolt or center-lock hub options provide braking flexibility.

Key Features:

• T800 carbon fiber construction
• 36mm rim depth, 30mm outer width, 25mm inner width
• Tubeless-ready / clincher compatible
• 6-bolt or center-lock hub options
• Thru-axle compatibility: 12x100mm front, 12x142mm rear
• 45C max tire size support
• Wheelset weight: 1530g ±20g

Rim Specifications

• Material: T800 Carbon
• Size: 700C
• Depth: 36mm
• Outer Width: 30mm
• Inner Width: 25mm
• Effective Rim Diameter (ERD): 573mm
• Rim Weight: 960g ±15g
• Tubeless Ready: Yes
• Max Tire Size: 45C

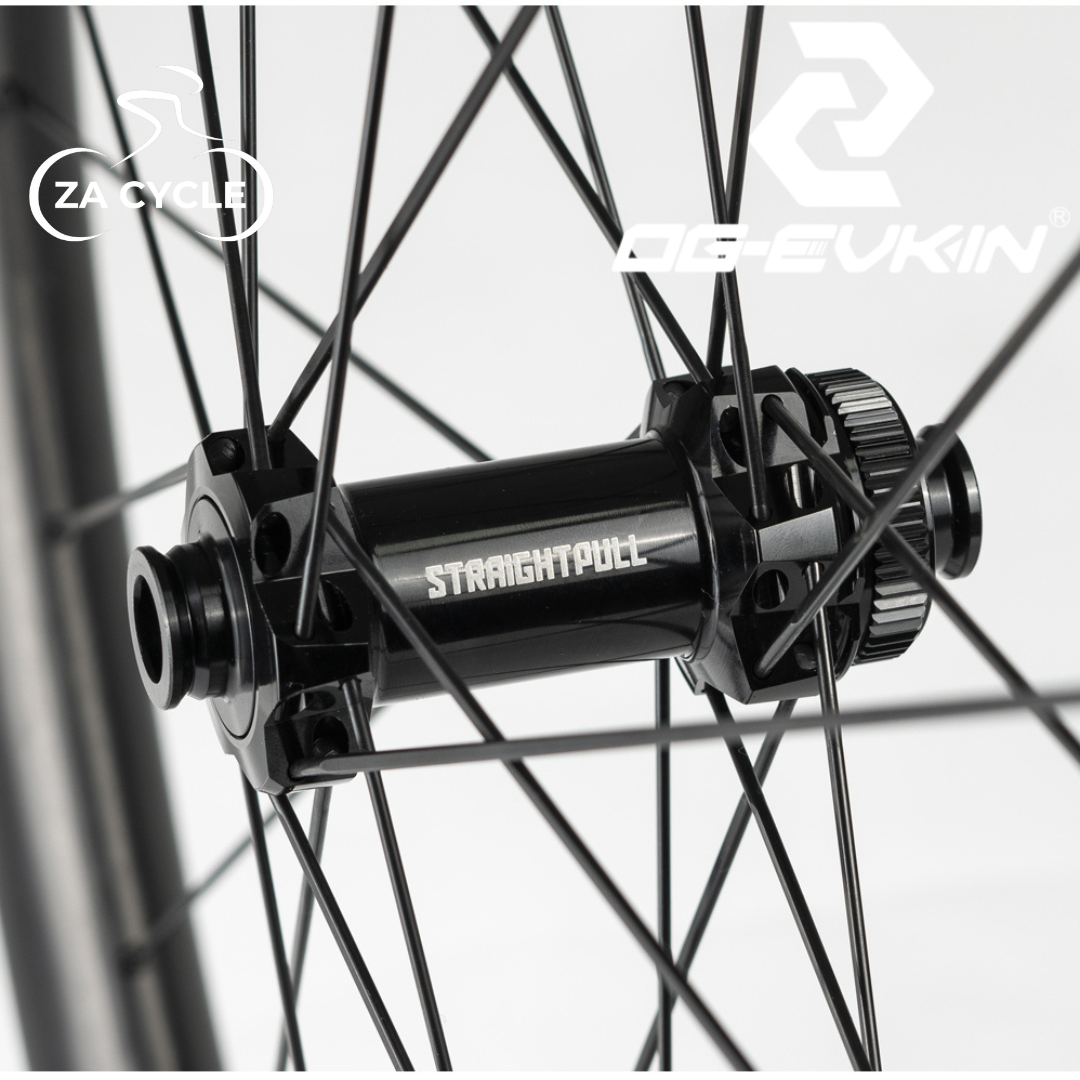

Hub & Bearing System

• Model: OG-01Hub-11s (HG/XDR freehub)
• Material: Aluminum alloy
• Hole Count: 24H front / 24H rear
• Braking Interface: 6-bolt / Center-lock compatible
• Axle Size: 12x100mm (front) / 12x142mm (rear)

Spokes & Lacing

• Spoke Model: Pillar AERO 1423
• Lacing Pattern: 24H front / 24H rear

What’s Included in the Box?

• 1x OG-EVKIN KYLIN GW-D36SL Wheelset (front and rear)
• 2x Rubber rim tape
• 1x Hub ring
• 3x Spare spokes

Why Choose This Wheelset?
The OG-EVKIN KYLIN GW-D36SL offers a perfect balance of lightweight performance and robust design for gravel and mixed-surface riding. With a 36mm rim profile, tubeless compatibility, and support for wide tires, it's an excellent choice for riders looking to enhance their bike’s capabilities for all-terrain adventures.

Upgrade your gravel bike with the OG-EVKIN KYLIN GW-D36SL carbon wheelset. Order now and ride with confidence across all terrains!
