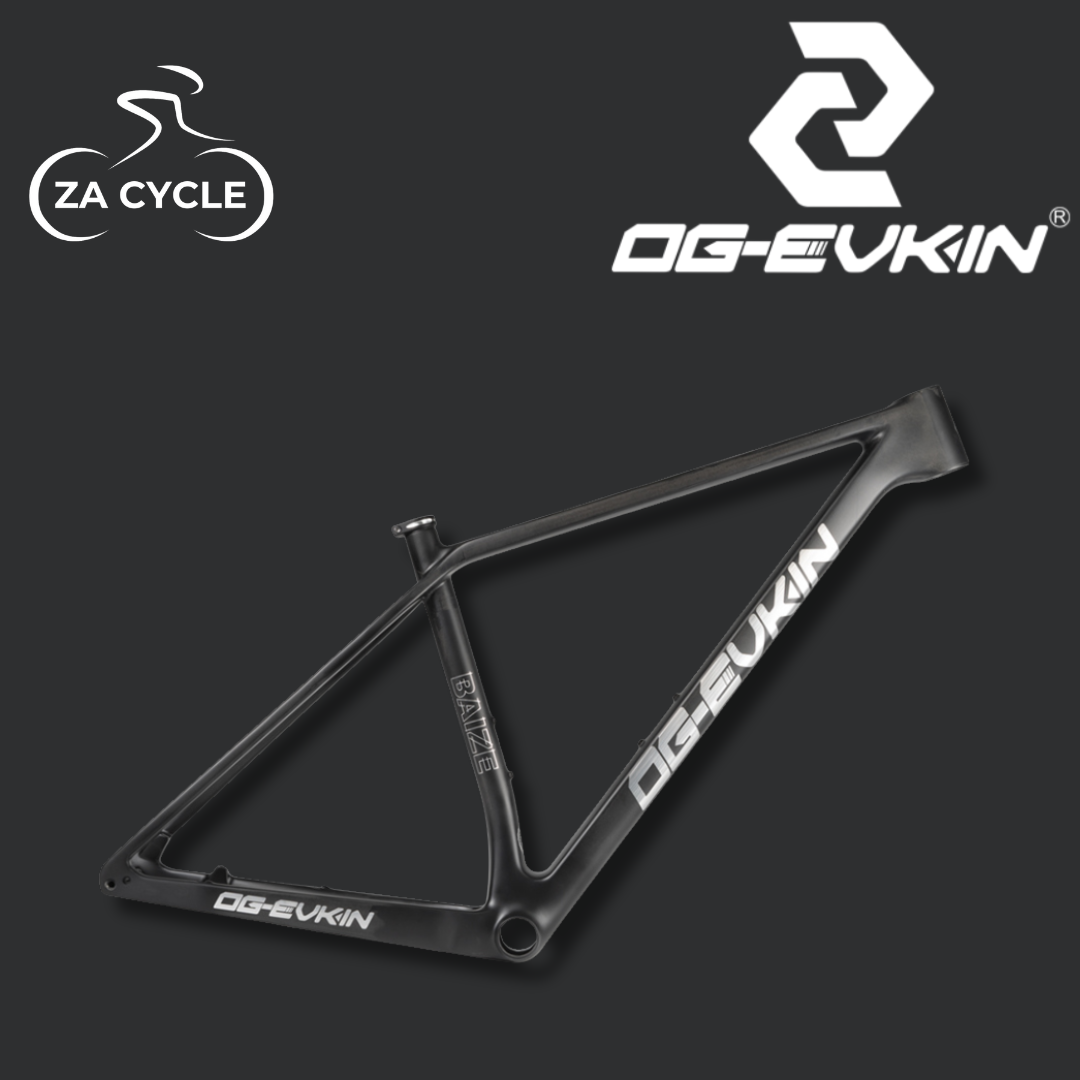

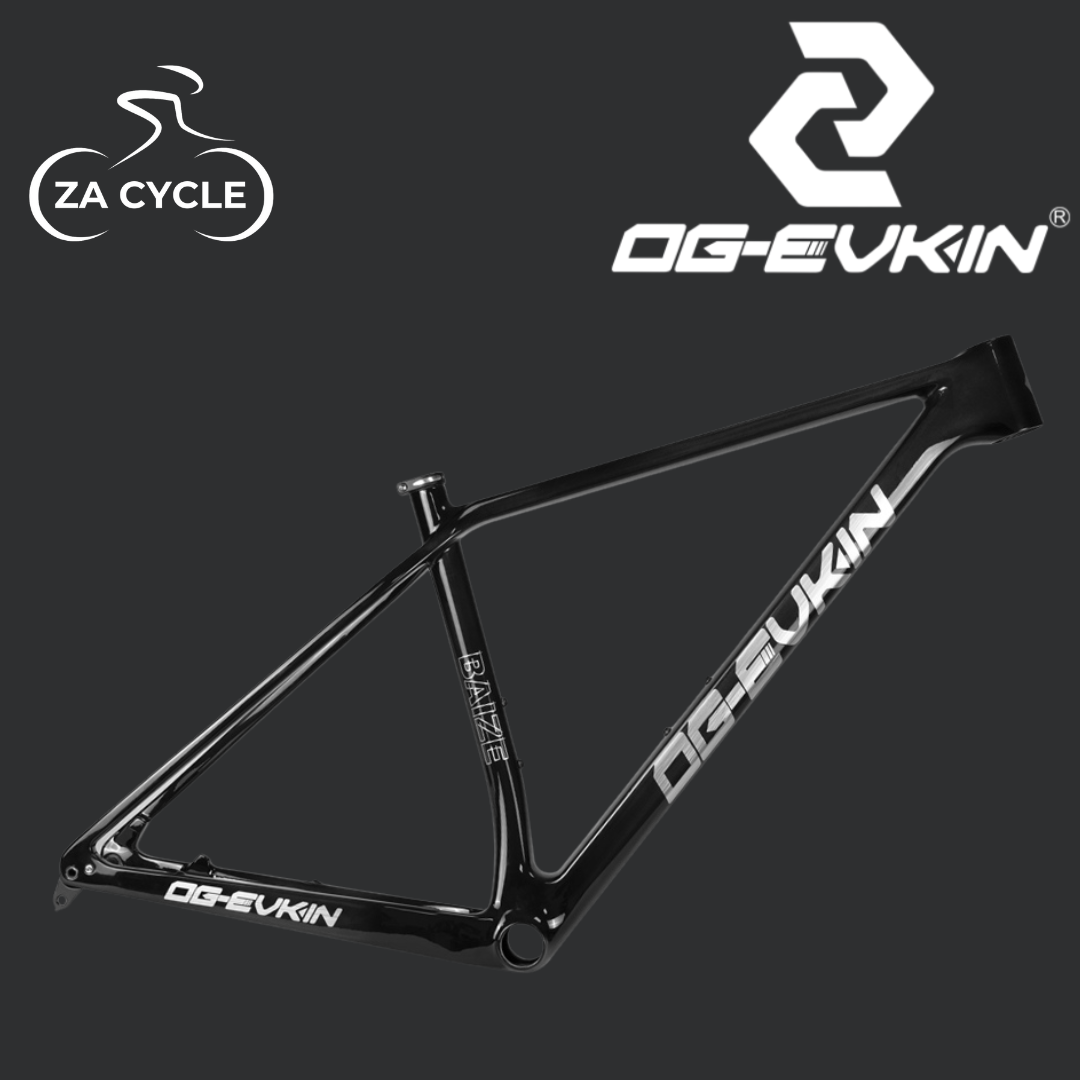

OG-EVKIN Baize MTB frame

Overview & Key Features
The OG-EVKIN BAIZE is a lightweight, race-ready carbon mountain bike frame designed for 29er XC and trail builds. Made from Toray T700 carbon fiber with a clean, full internal cable routing system, it supports modern Boost 148x12mm thru-axle spacing, BB92 bottom bracket, and 160mm disc brakes. The BAIZE accommodates up to 2.4” tires, is compatible with both Di2 and mechanical drivetrains, and weighs just 950g ±50g in size M.

Key Features:

• Toray T700 carbon fiber construction (UD weave)
• 29er MTB frame with Boost 148x12mm axle spacing
• BB92 press-fit bottom bracket
• Max tire clearance: 2.4”
• Max crankset size: 38T
• 160mm disc brake compatibility
• Internal cable routing for Di2 and mechanical systems
• Lightweight: 950g ±50g (Size M)
• Matte finish with bright logo option
• 2-year warranty

Frame Specifications

• Type: 29er Mountain Bike MTB Frame
• Material: Toray T700 Carbon (UD weave)
• Headset: 1-1/2” - 1-1/2” (52mm) straight
• Bottom Bracket: BB92 (press-fit)
• Axle Boost: 148x12mm thru-axle
• Max Tire Size: 2.4”
• Max Crankset Size: 38T
• Seat Tube Clamp: 34.9mm
• Seatpost Size: 31.6mm
• Disc Brake Size: 160mm
• Weight: 950g ±50g (Size M)
• Finish: Matte / Bright logo
• Color: Black
• Max Load: 120kg
• Compatibility: Di2, Mechanical

Why Choose This Frameset?
The OG-EVKIN BAIZE is a no-compromise carbon MTB frame engineered for fast and responsive trail riding. Lightweight, compatible with modern components, and built to last, it's the perfect base for your next 29er mountain bike build.

Start your MTB build today with the OG-EVKIN BAIZE carbon frame. Order now and elevate your ride!
