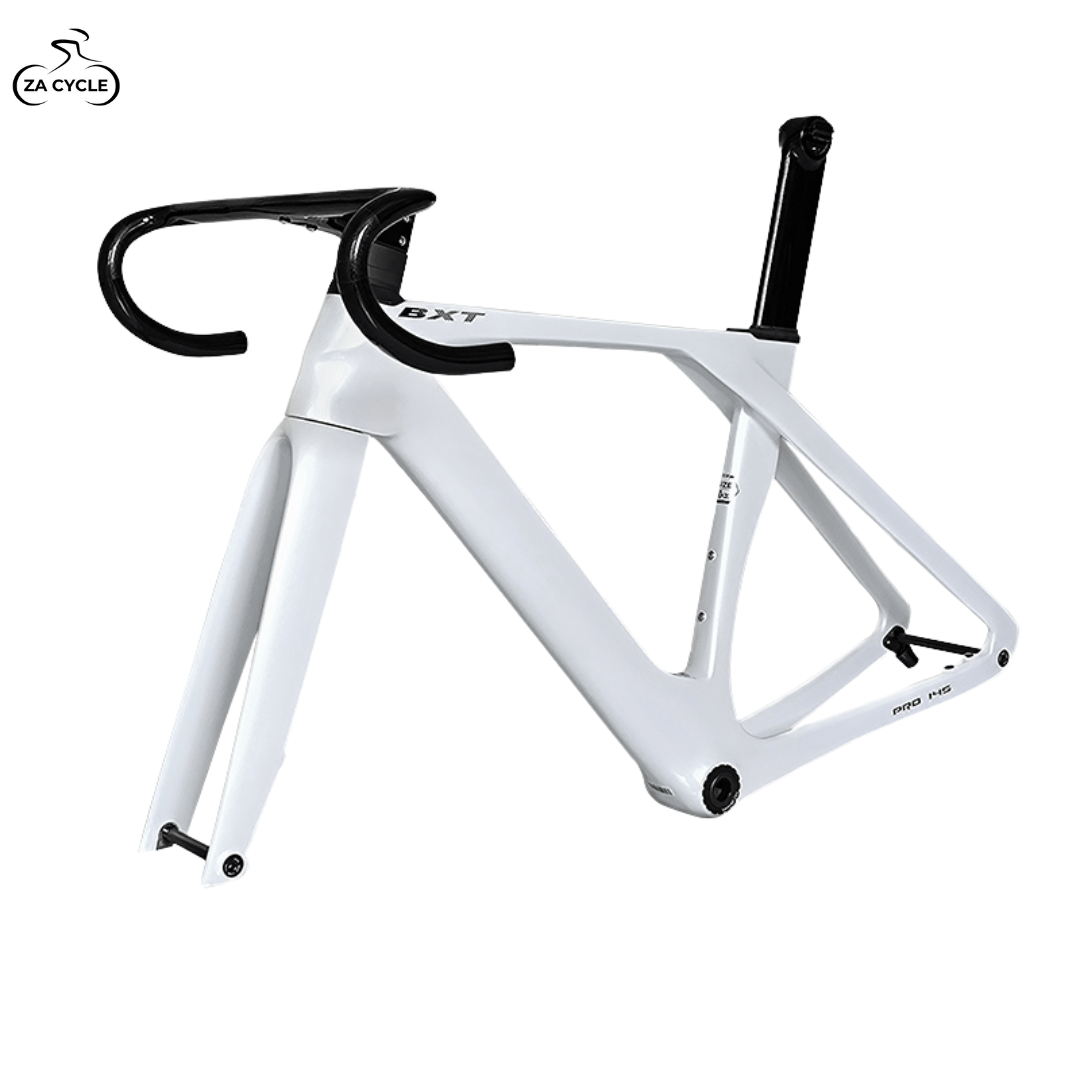

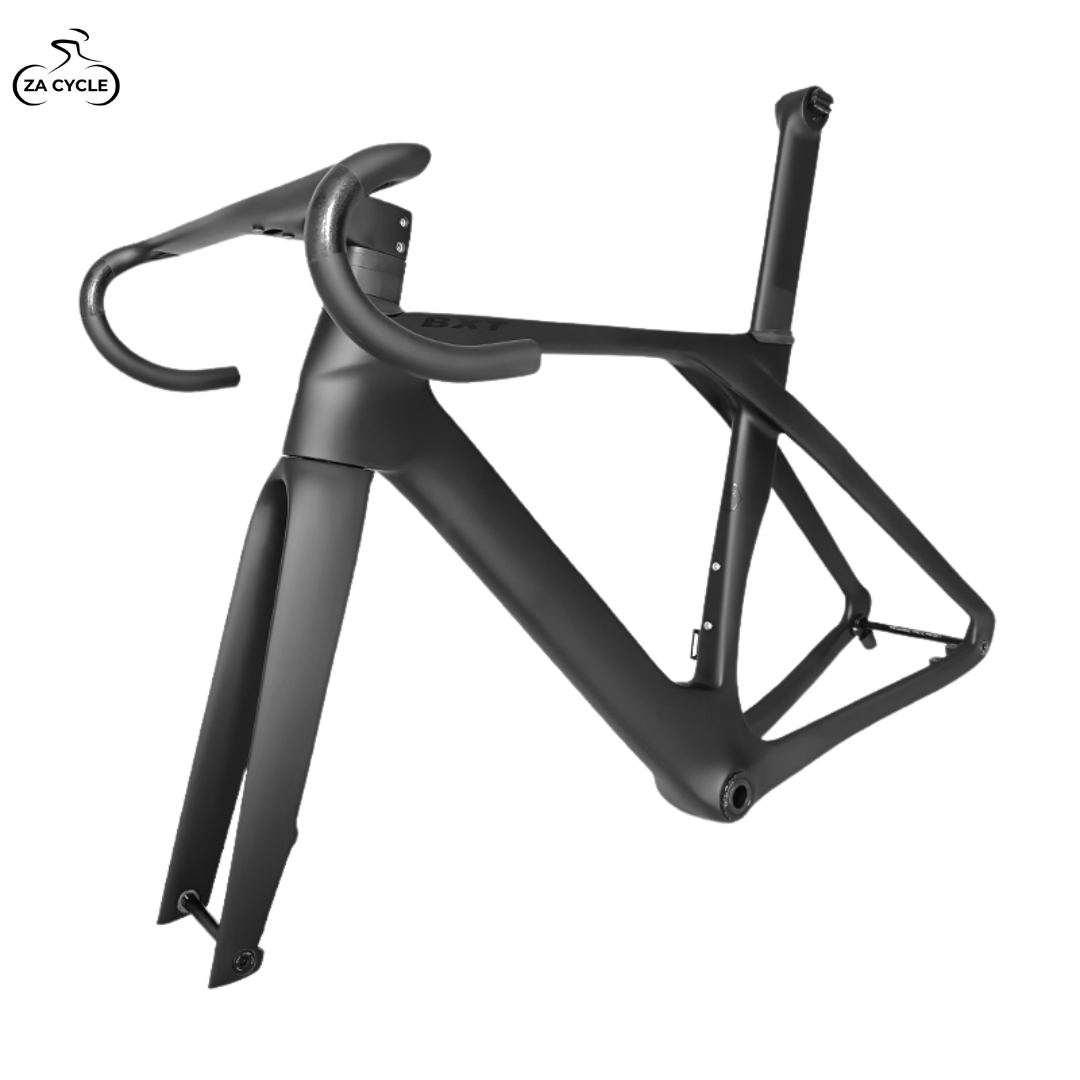

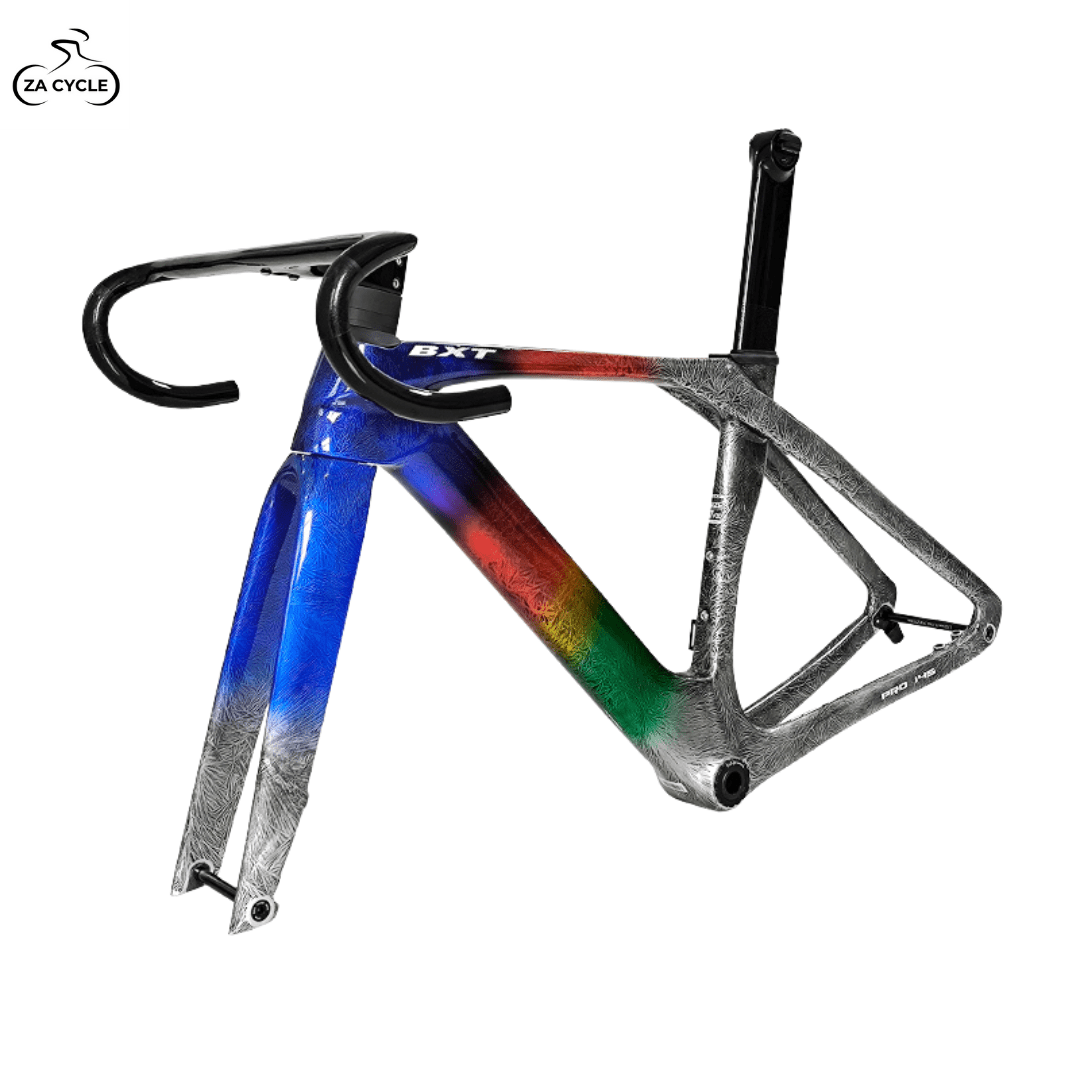

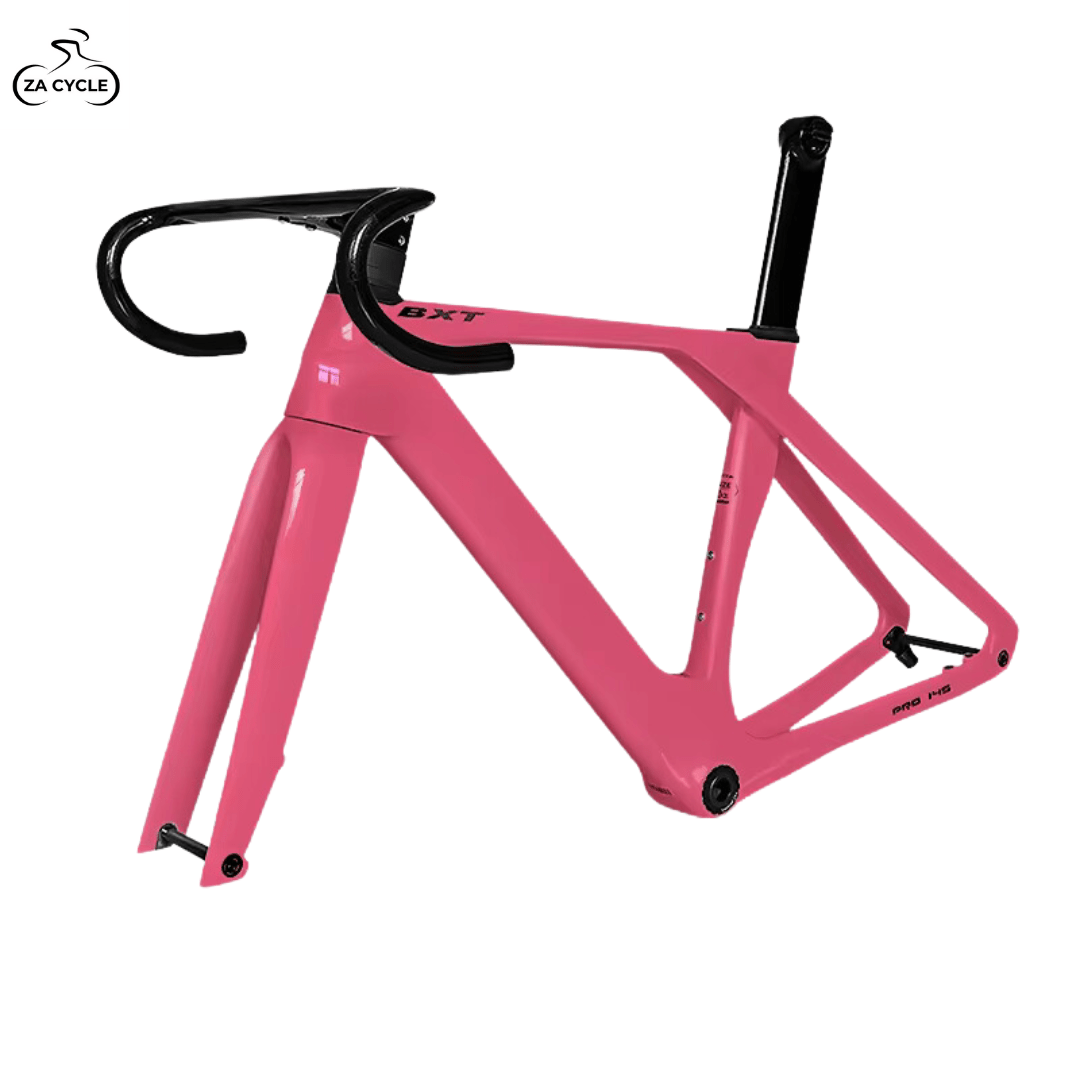

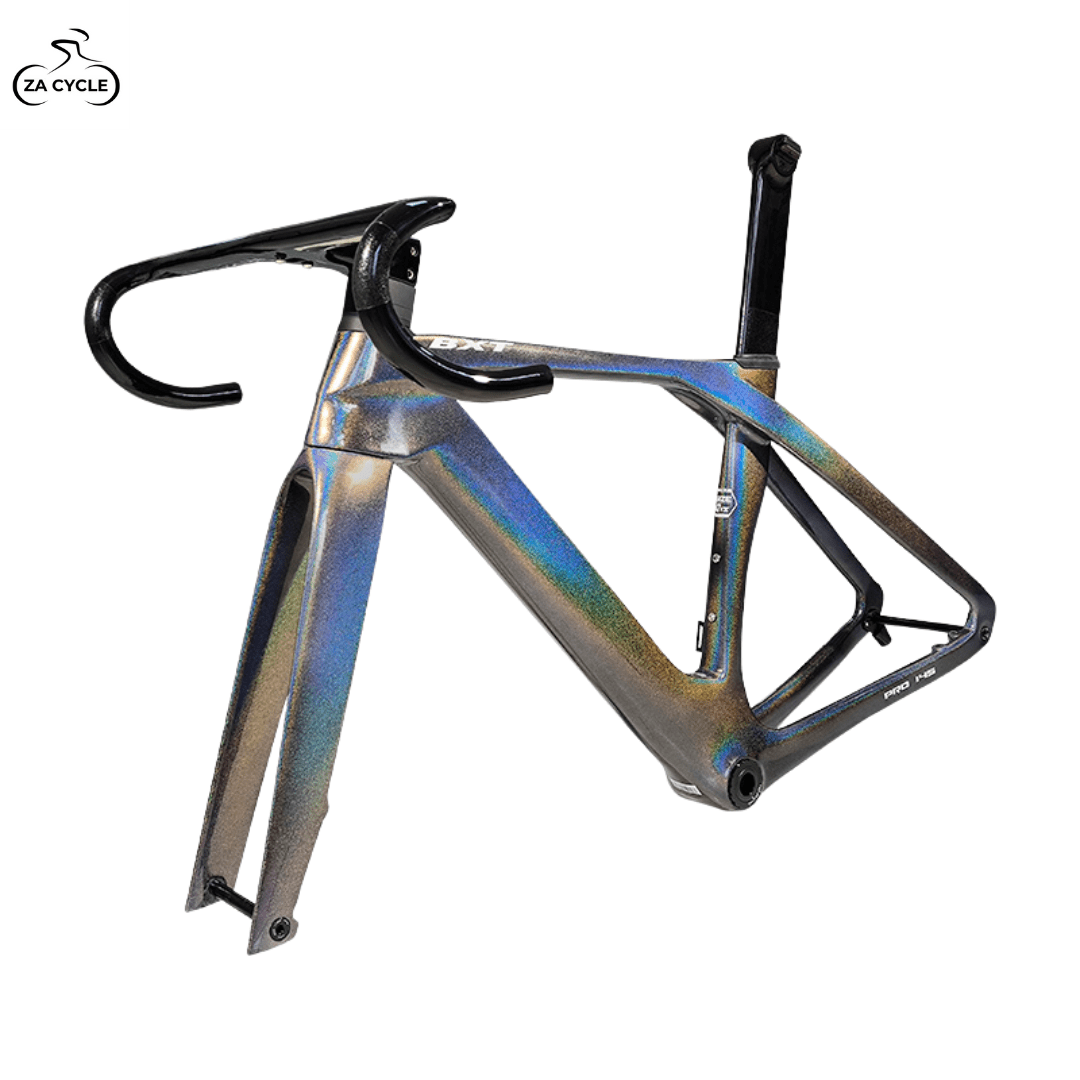

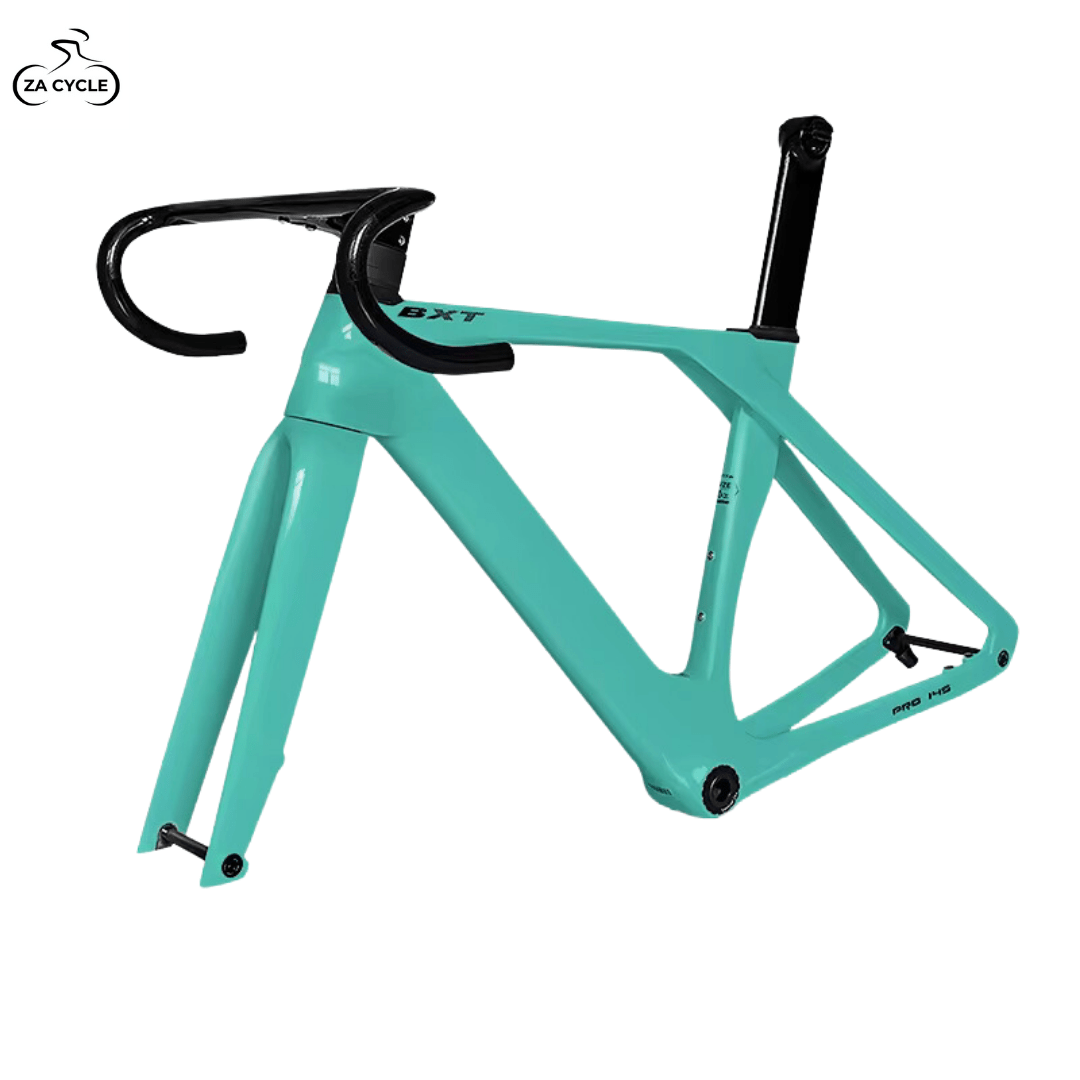

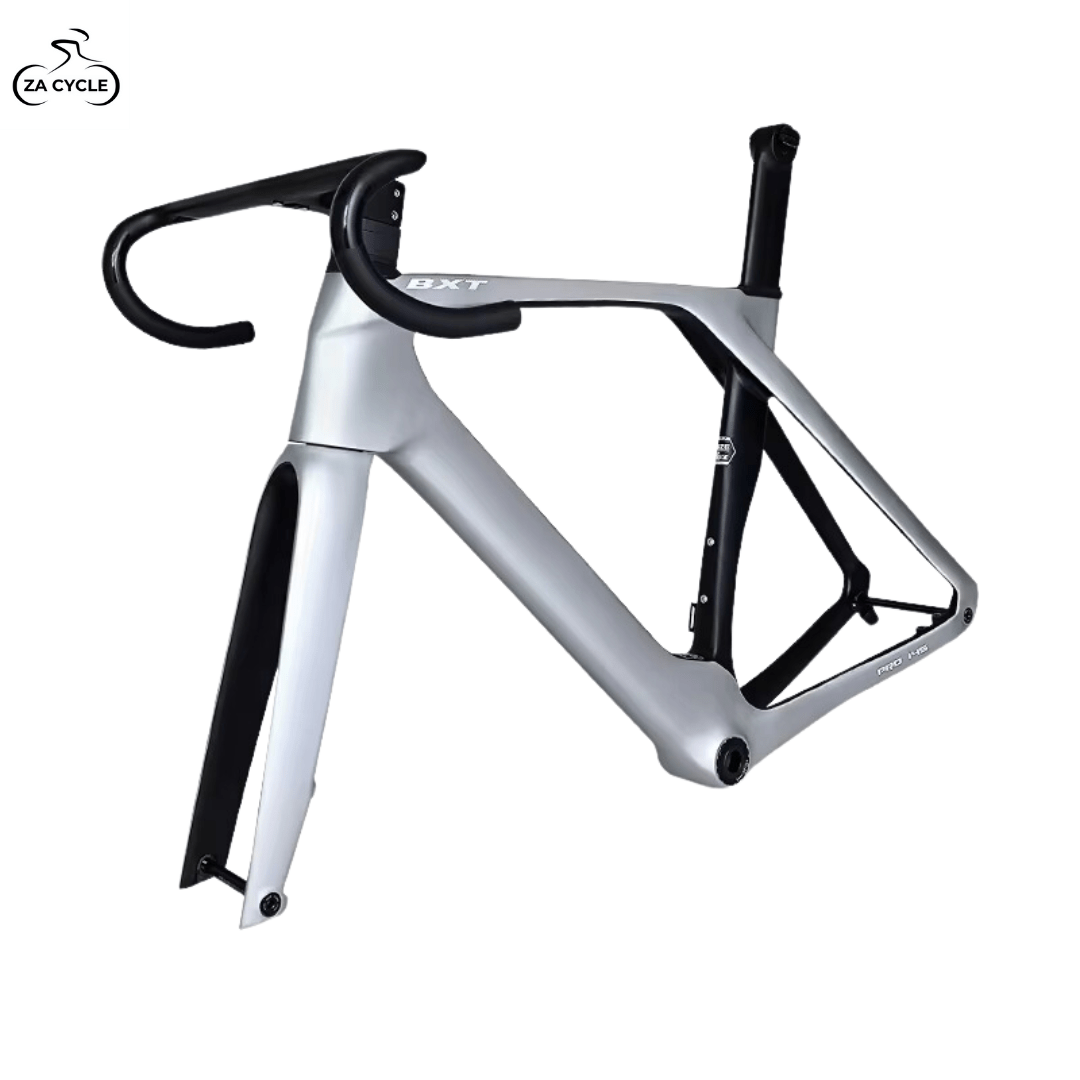

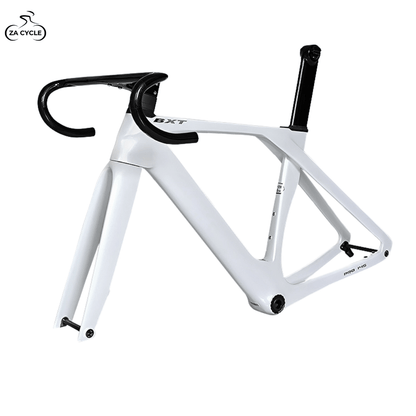

BXT Nova Carbon Fiber Road Frameset

Key Features

• Material: T800 Carbon Fiber – Lightweight, stiff, and durable.
• Frame Weight: 1050g ± 50g (54cm) | Fork Weight: 430g
• Brake System: Flat-Mount Disc Brakes (F/R) for optimal stopping power.
• Bottom Bracket: T47 Screw-in BSA (86mm width) for efficient power transfer.
• Cable Routing: Fully internal for a sleek aerodynamic design.
• Integrated Cockpit: Carbon handlebar & stem for enhanced aerodynamics.
• Wheel & Tire Fit: 700C wheels, max 32C tire clearance.
• Axles: 100×12mm (Front) | 142×12mm (Rear)

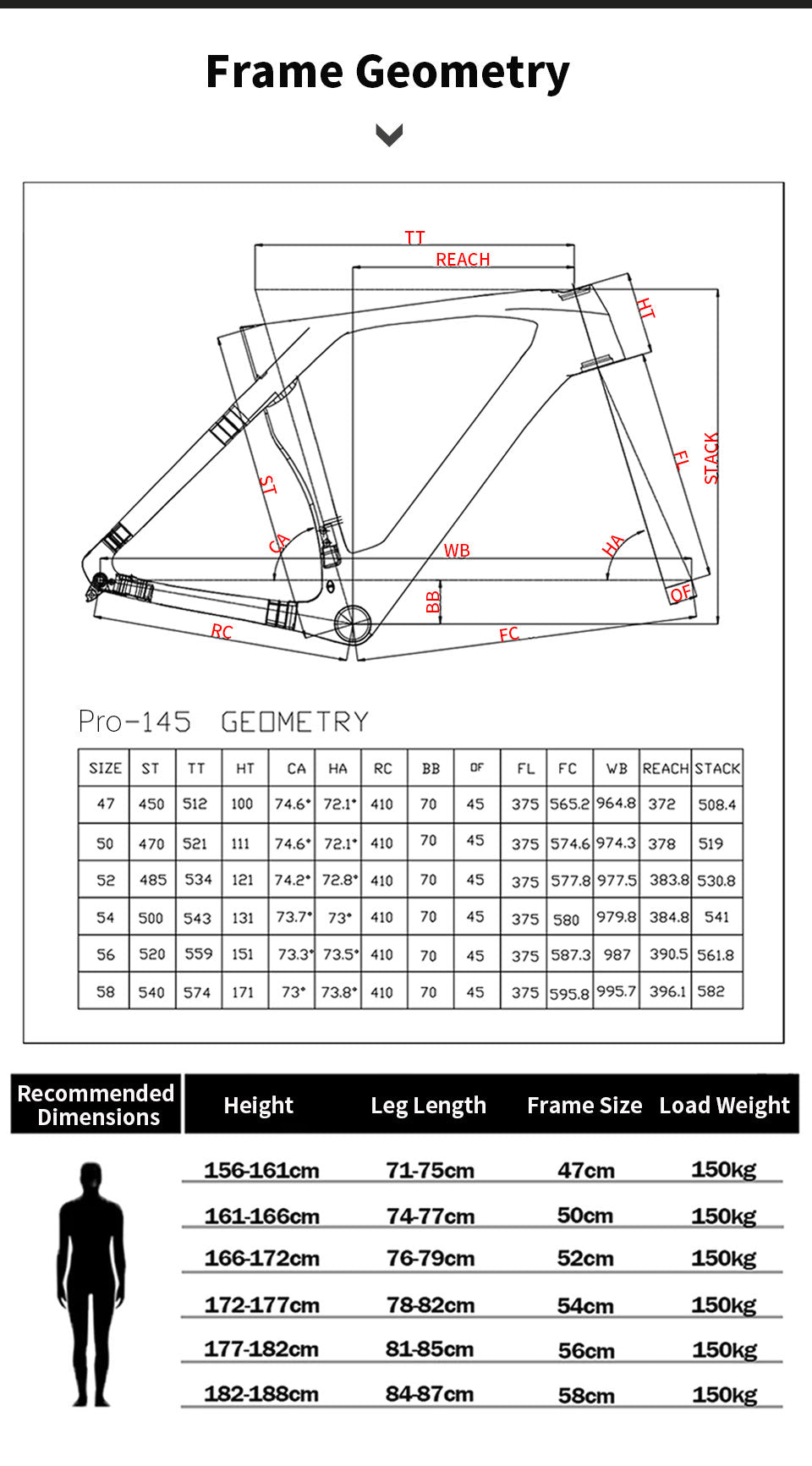

• Sizes Available: 47 / 50 / 52 / 54 / 56 / 58 cm
• Max Rider Weight: 150kg

What’s Included in the Set?

✔ BXT Road 145 Carbon Frame
✔ Full Carbon Fork
✔ Integrated Carbon Handlebar & Stem
✔ Carbon Aero Seatpost (350mm, 195g)
✔ Headset (Top 1-1/2”, Down 1-1/2”)
✔ Thru-Axle Skewers (F/R)
✔ T47 Bottom Bracket (BSA 86mm)
✔ Cable Spacer & Dust Cover
✔ Seat Clamp
